Vehicle Detail

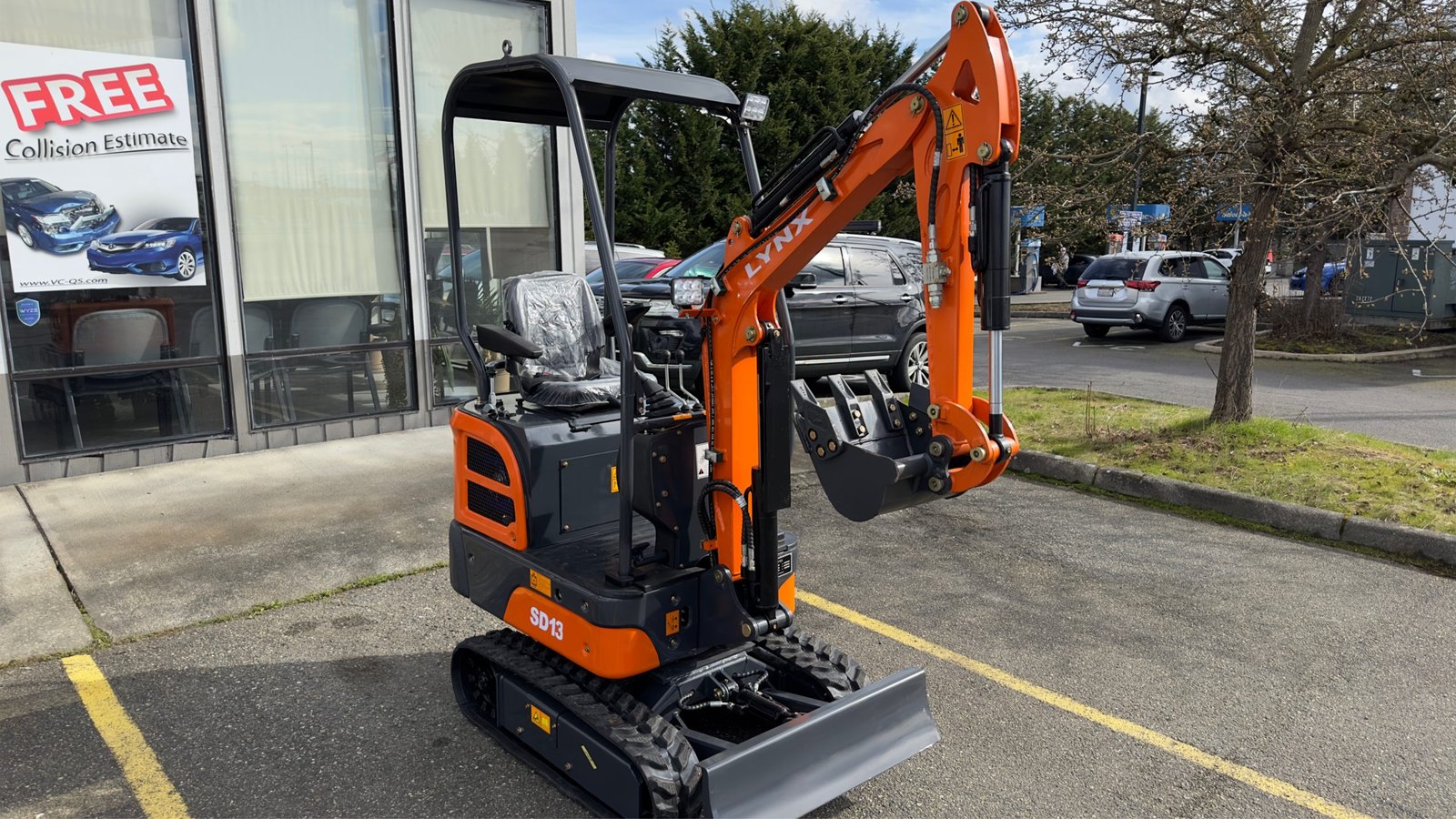

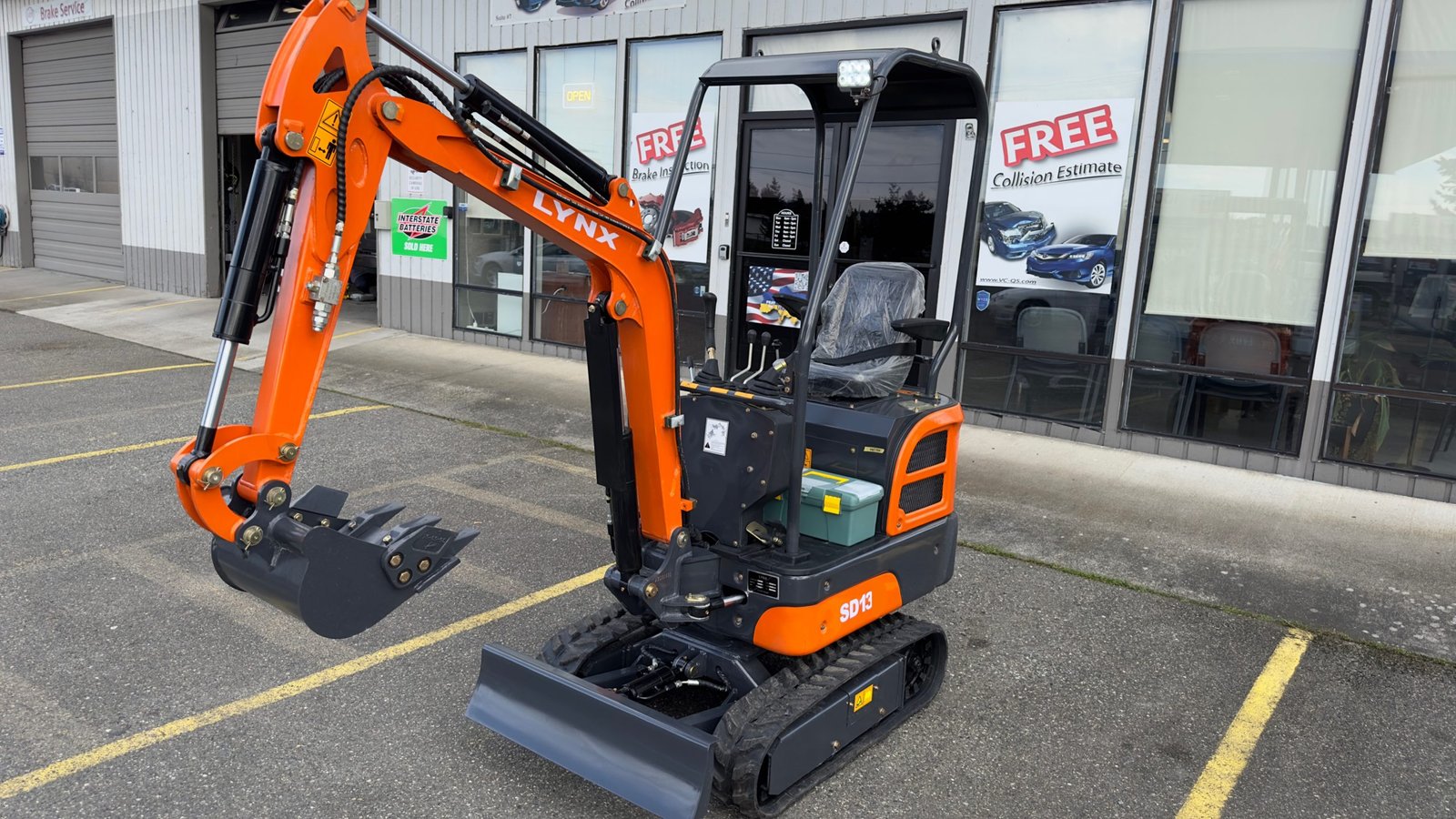

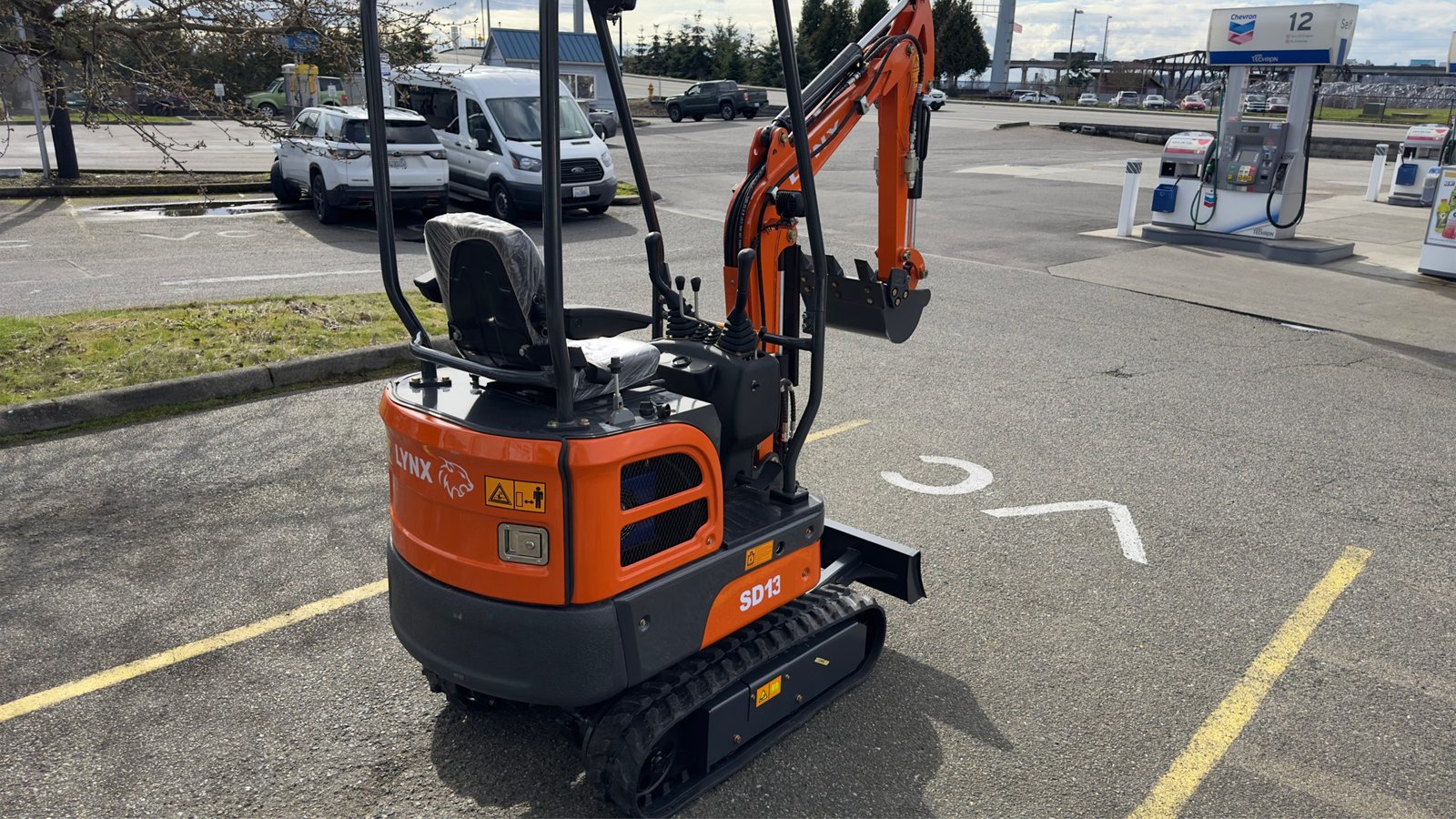

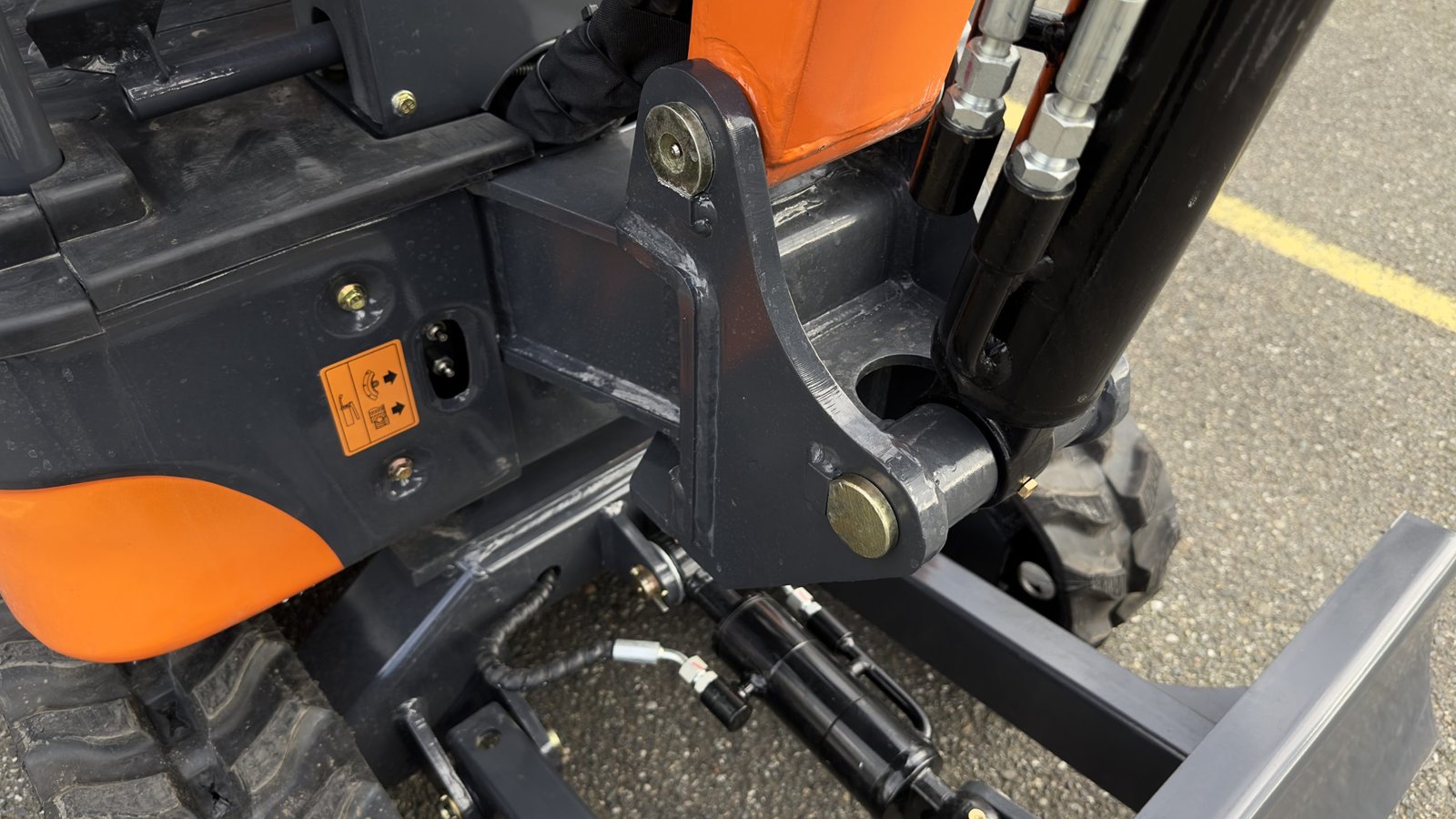

2024 LYNX SD13 2,645 Pounds Mini Excavator Mini Digger Gas, brand new, affordable mini excavator, great for small businesses or homeowner projects. These are perfect for plumbers, landscapers, electricians, demolition, dirt workers, farmers, do-it-yourselfers, and so on. Great for digging trenches, foundations, septic, or water drain pipes. Great for fence posts, digging a pond, retaining walls, or running electrical pipes underground. Excellent for clearing properties, grading, yard work, etc. Small and versatile, it fits through most backyard gates. Easily transportable, either in a small trailer or the back of a flatbed truck. Features a backfill blade, 7-inch rubber tracks, and a 16-digging bucket that digs down to 5.5 feet. Has accessory hydraulic lines for other attachments, like a jackhammer, hydraulic thumb, grappler, or any other attachments (attachments not included). Powered by 13.6 HP Briggs & Stratton Engine Gas. Pretty powerful machine for its size. Come check it out. Can deliver.

ABOUT LYNX

Description

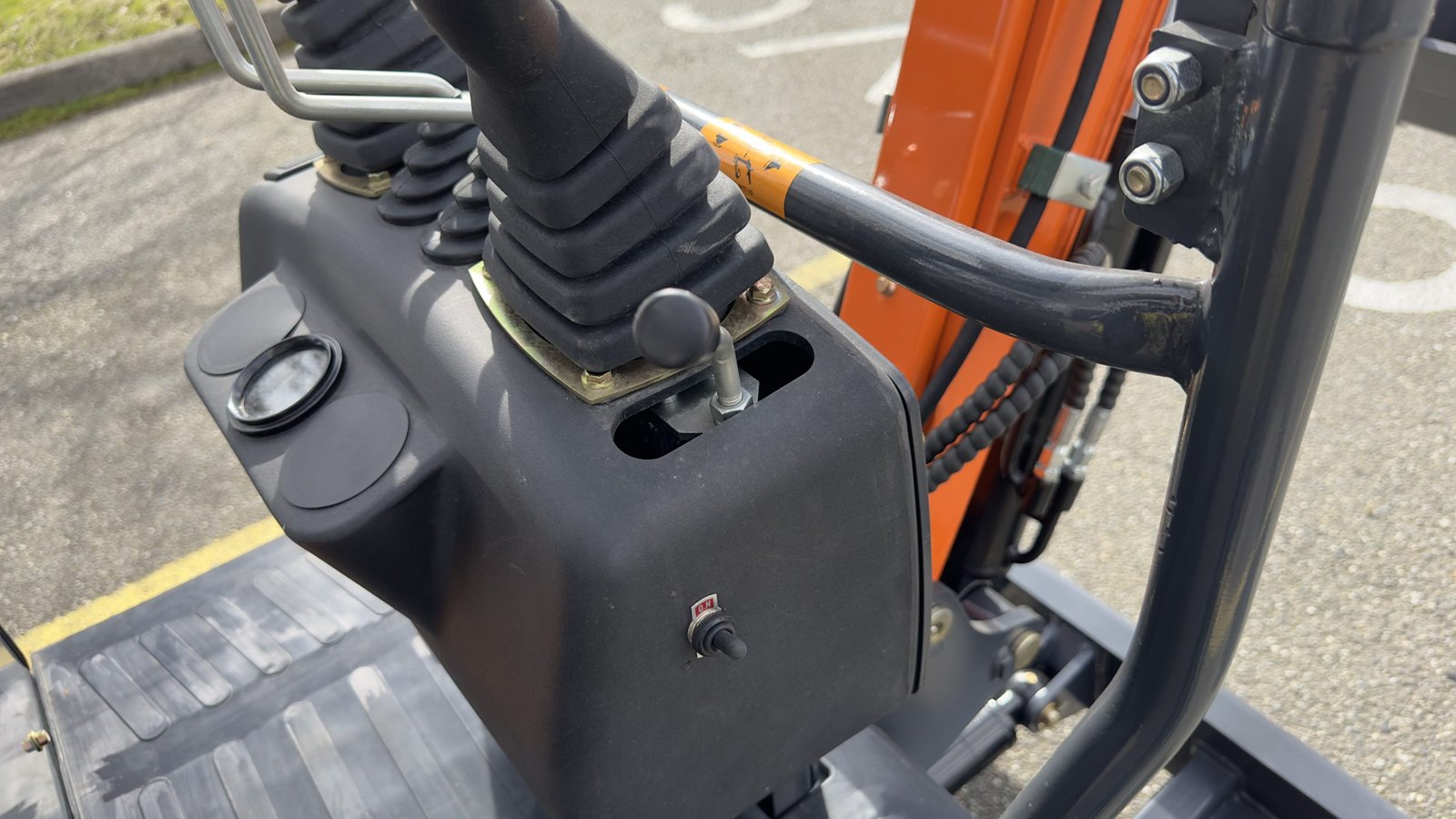

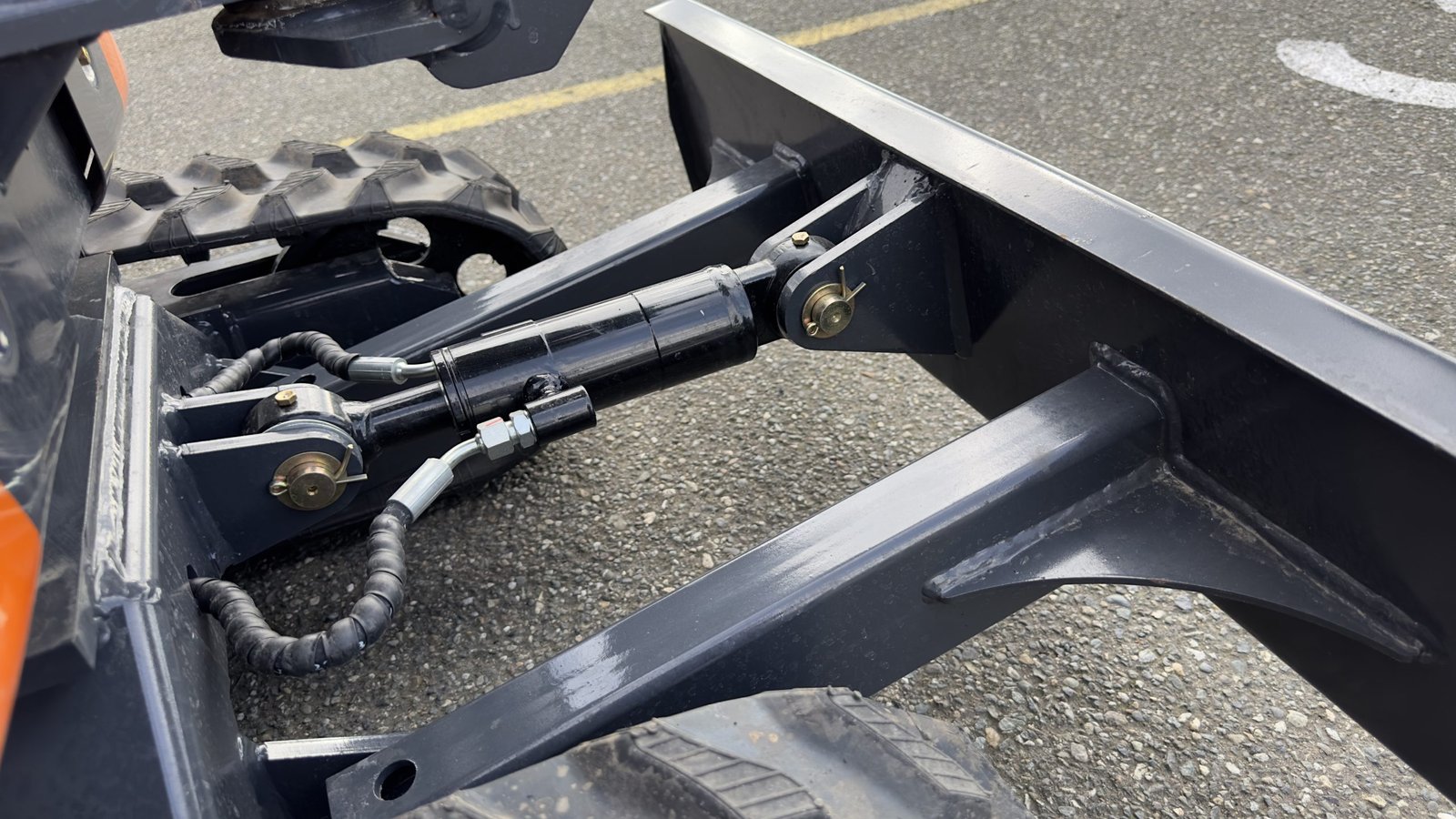

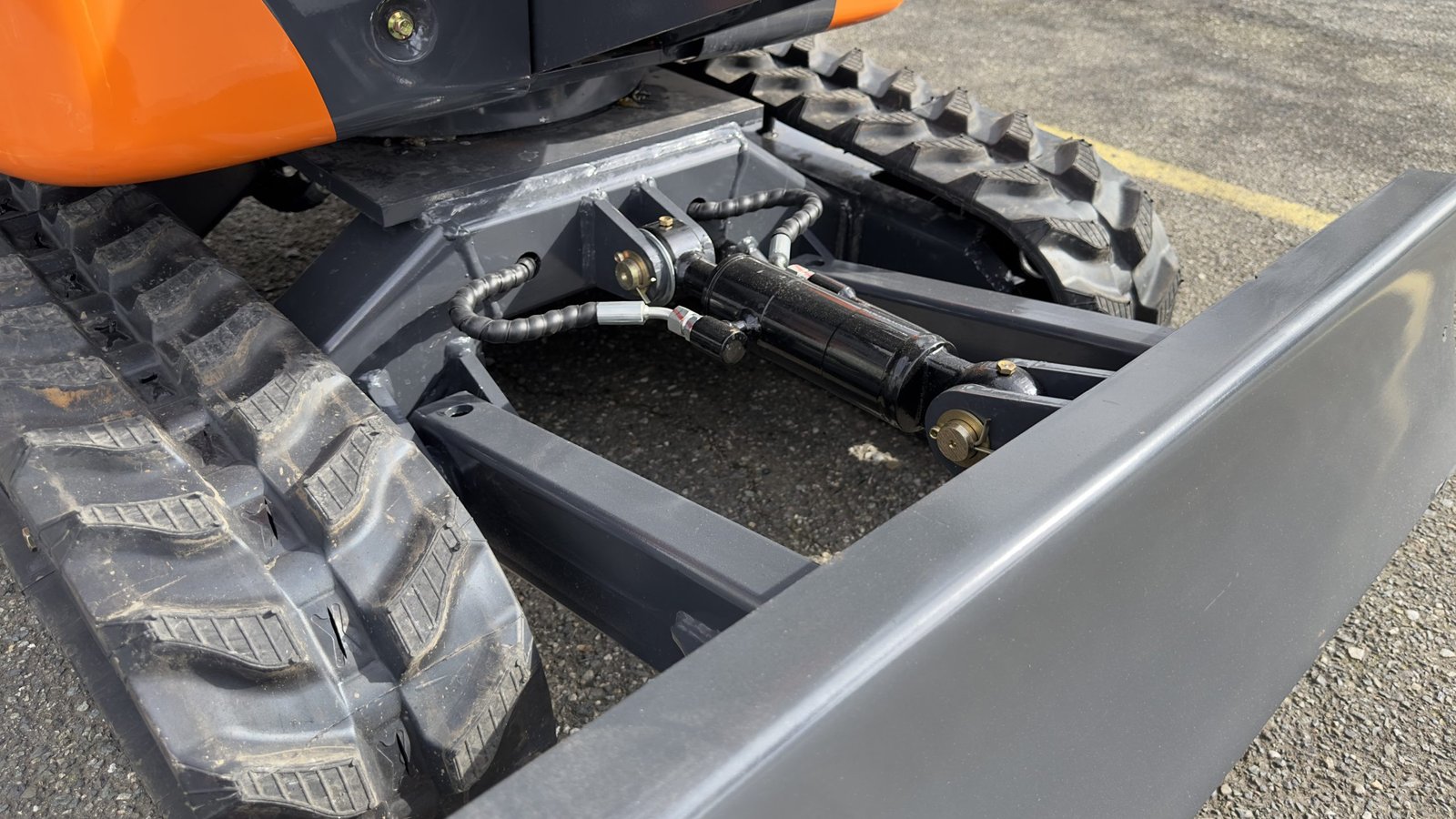

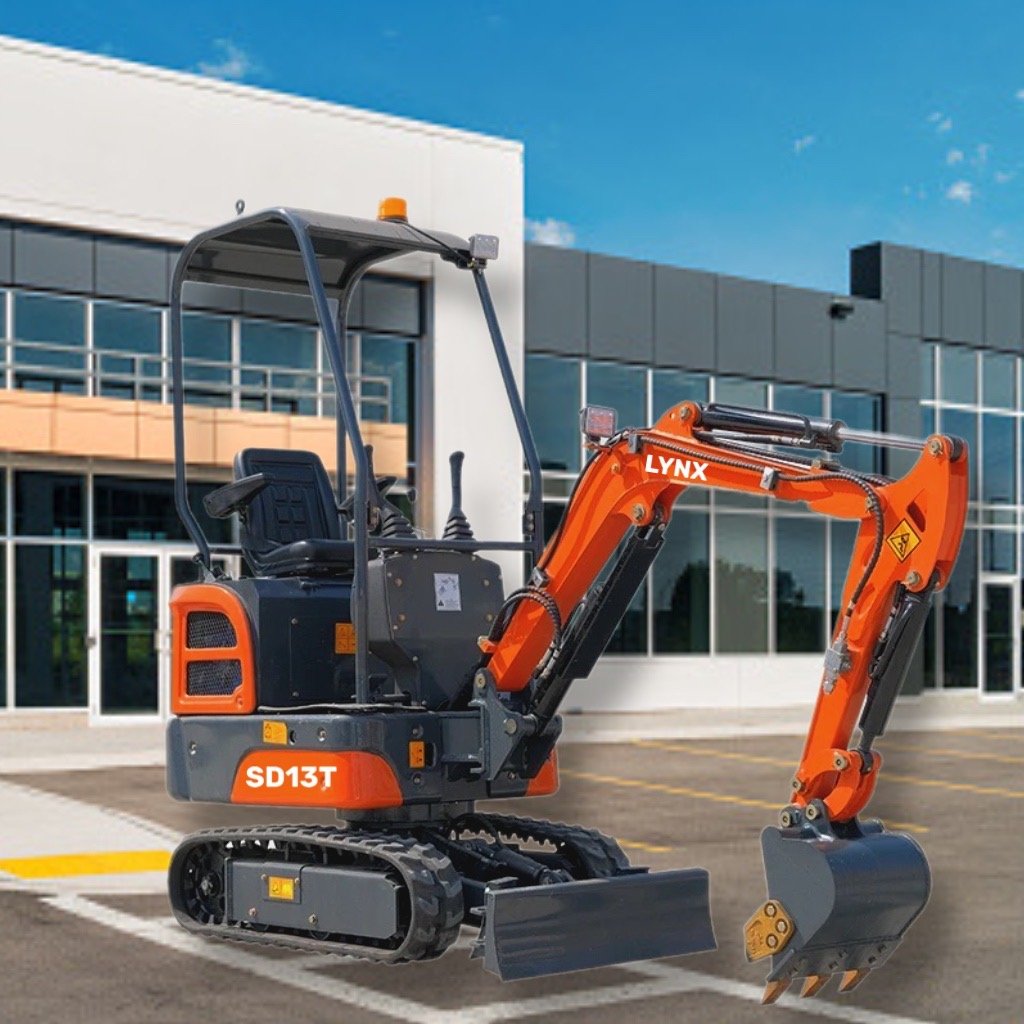

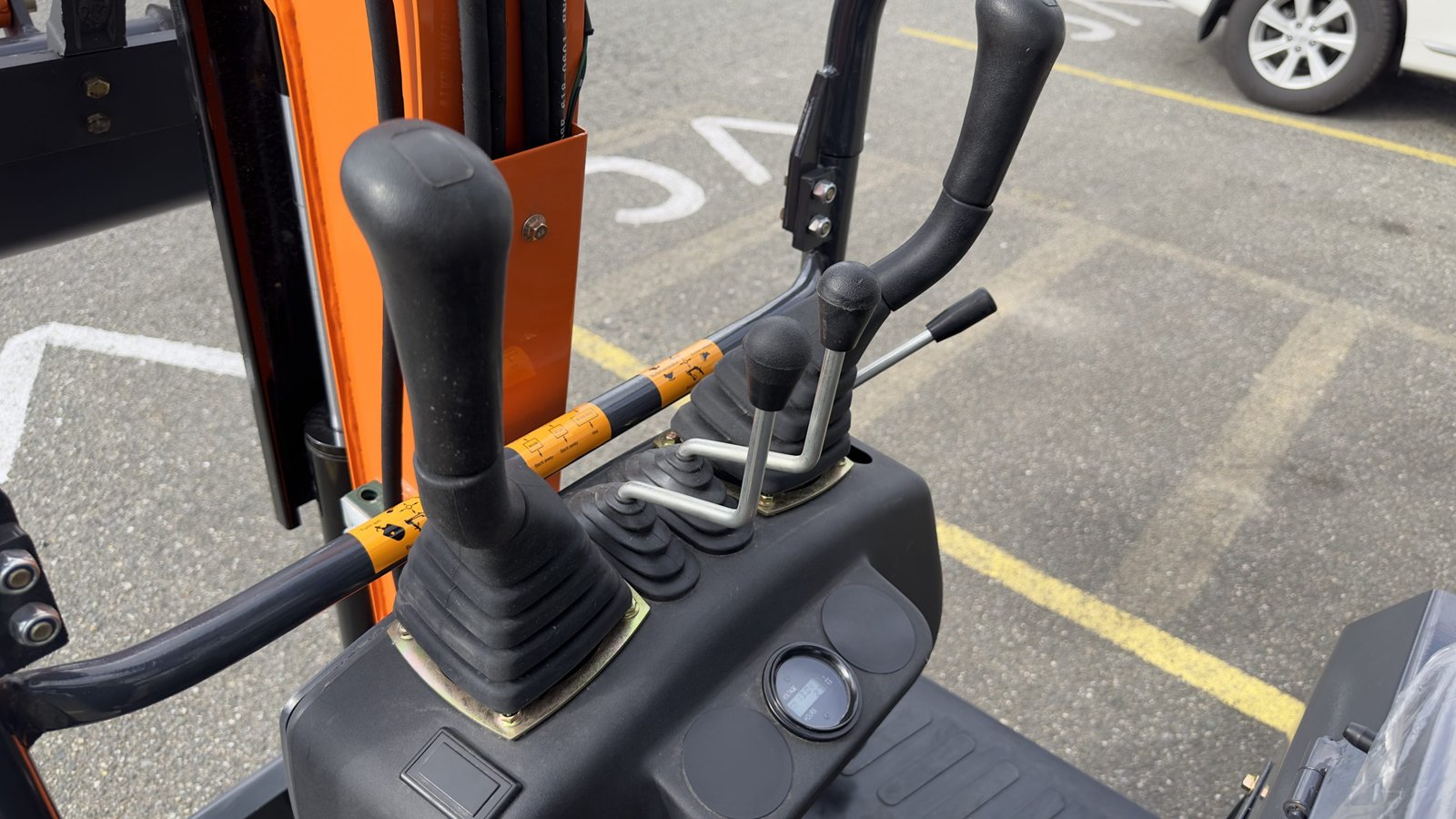

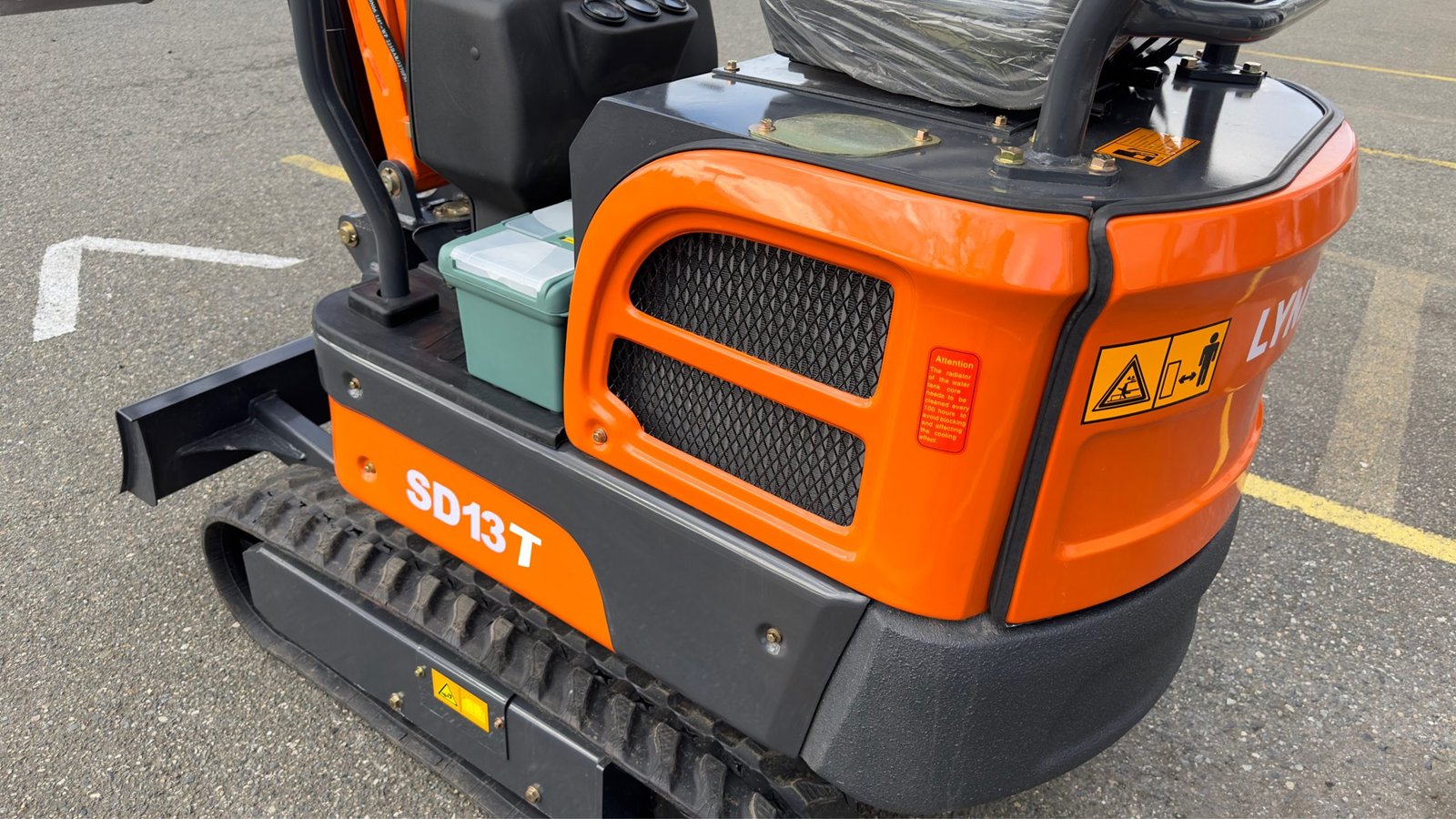

2024 LYNX SD13T Mini Excavator, 0.4 Hours, 13.6 HP Briggs & Stratton Engine Gas, Pilot Operated Controls, Auxiliary Hydraulics Equipped, Back Fill Blade, Rubber Tracks, Pin on Digging Bucket, 2,645 Pounds Class, 5 Feet 4 Inches Digging Depth

Specifications

The year 2024
Manufacturer LYNX CONSTRUCTION LTD
Model SD13T
Serial Number
Condition New

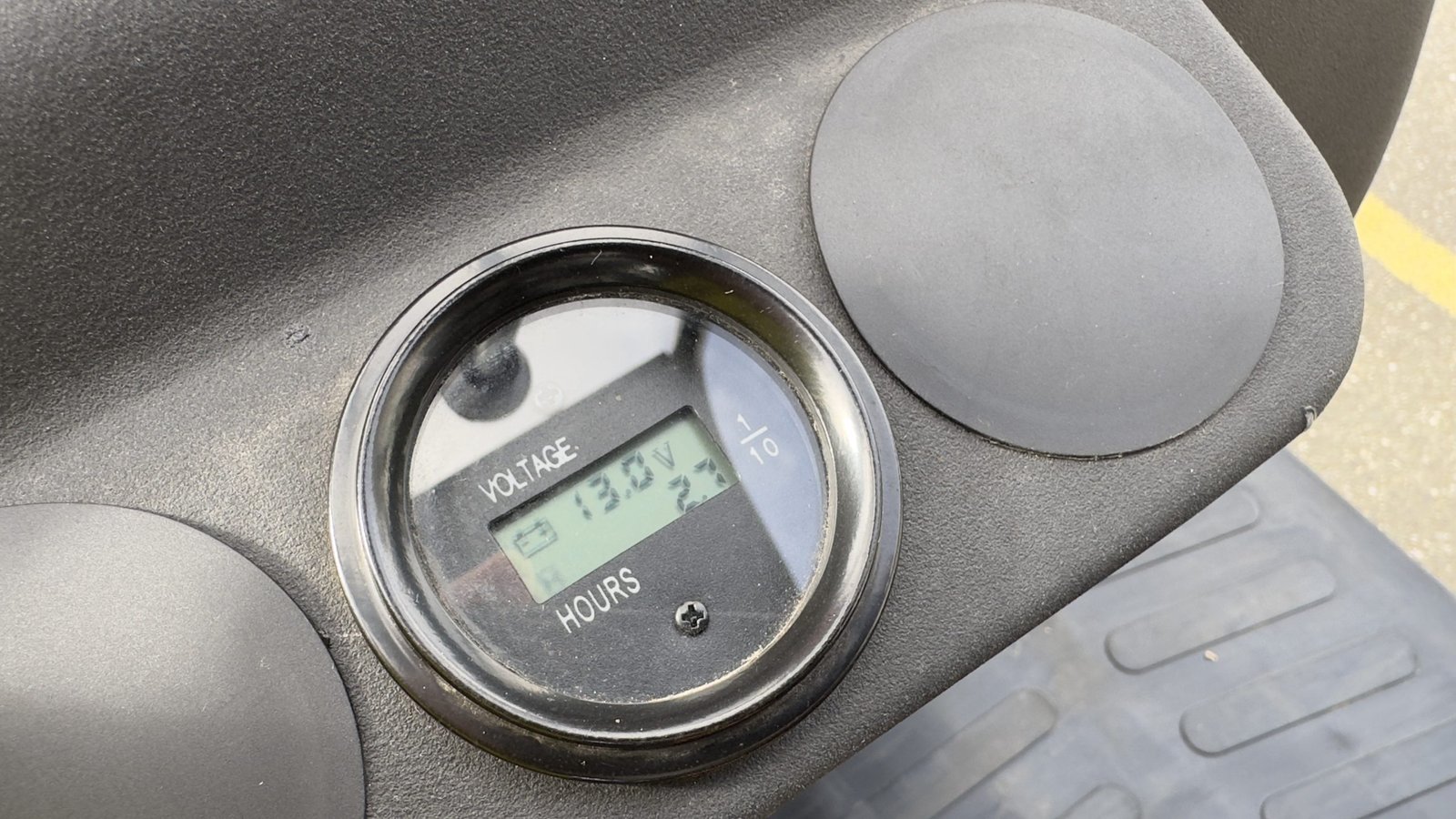

Hours 0.4
Category Specific
Operating Weight 2,281 lb
Auxiliary Hydraulics Yes
Exterior
ROPS Type Open
Engine
Horsepower 13.6 HP

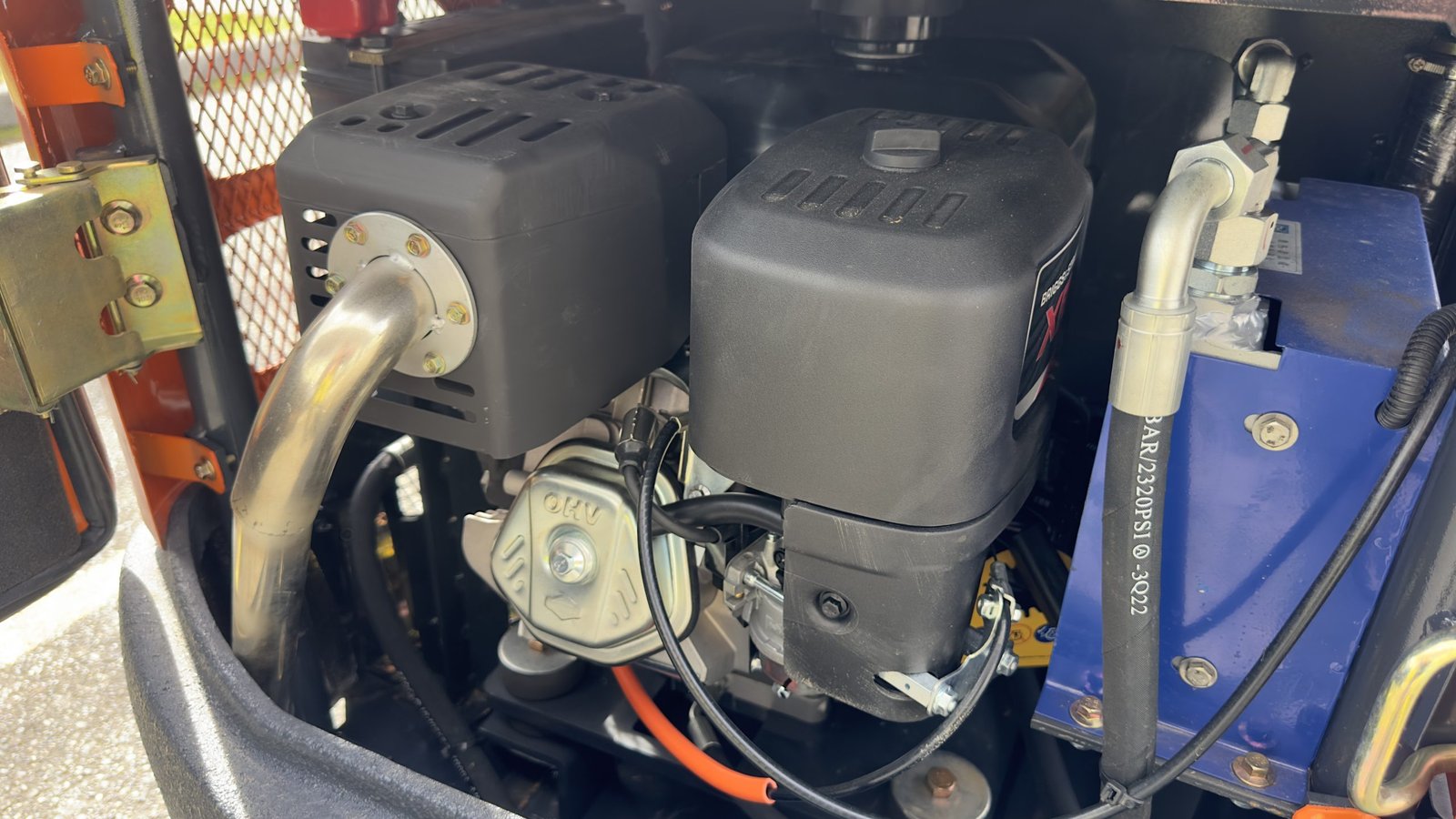

Engine Briggs & Stratton

Machine parameters
Model SD13T

Operating Weight: 1.2ton

Bucket Capacity 0.028m³
Rated Power 10kw
Max.Hydraulic System Pressure 16mpa
Max. Grade ability 30°
Max. Ground Pressure 18.9N/m²
Max Walking Speed 2.1Km/h
Max. Traction 9.2KN
Platform Rotary Speed 9-11r/min

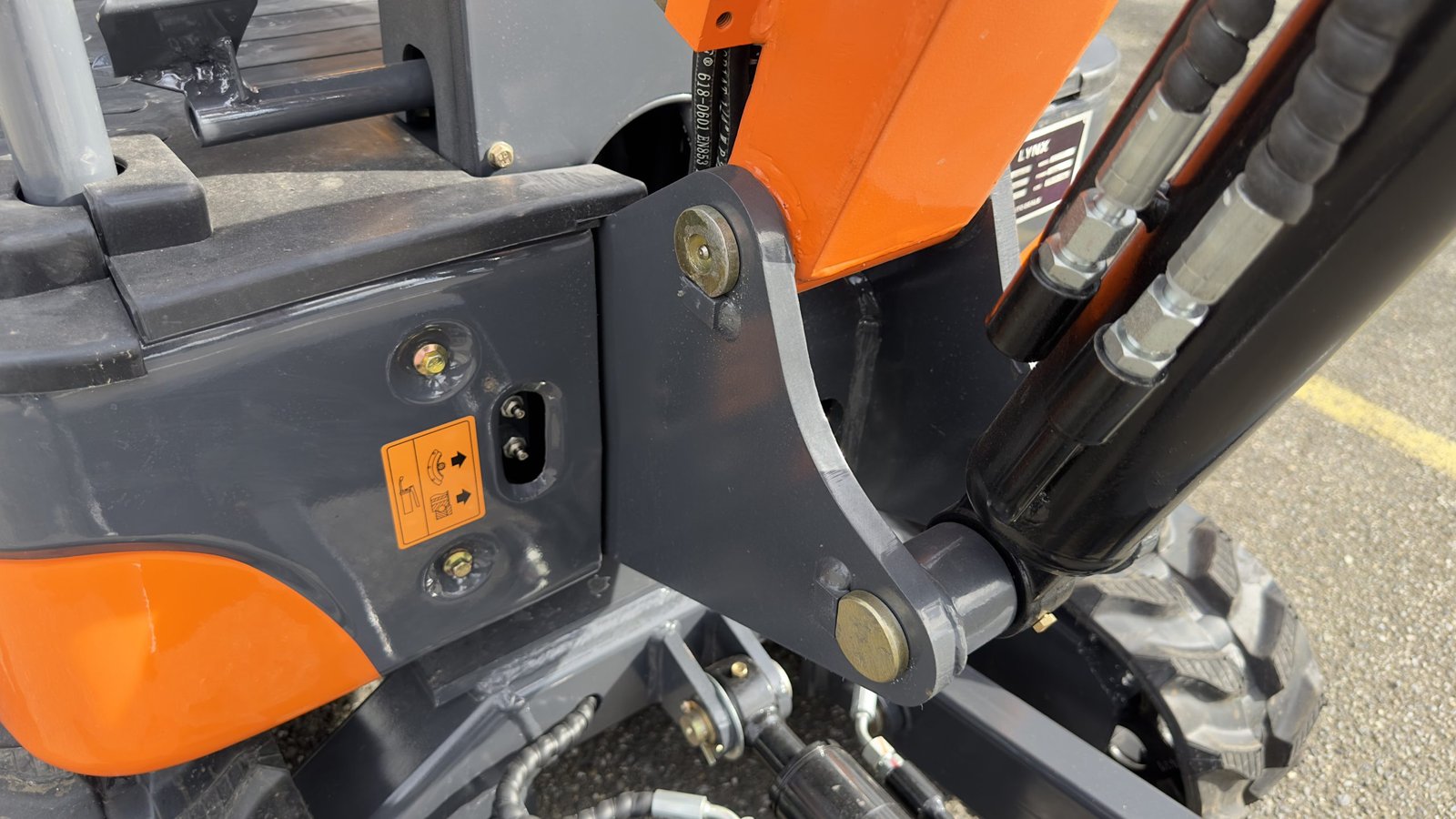

Boom swing function, yes
Dimensions
Overall Length 2770mm
Overall Width 925mm
Overall Height 1550mm/2100(Chair/Roof)
Arm Length 800mm
Boom Length 1490mm

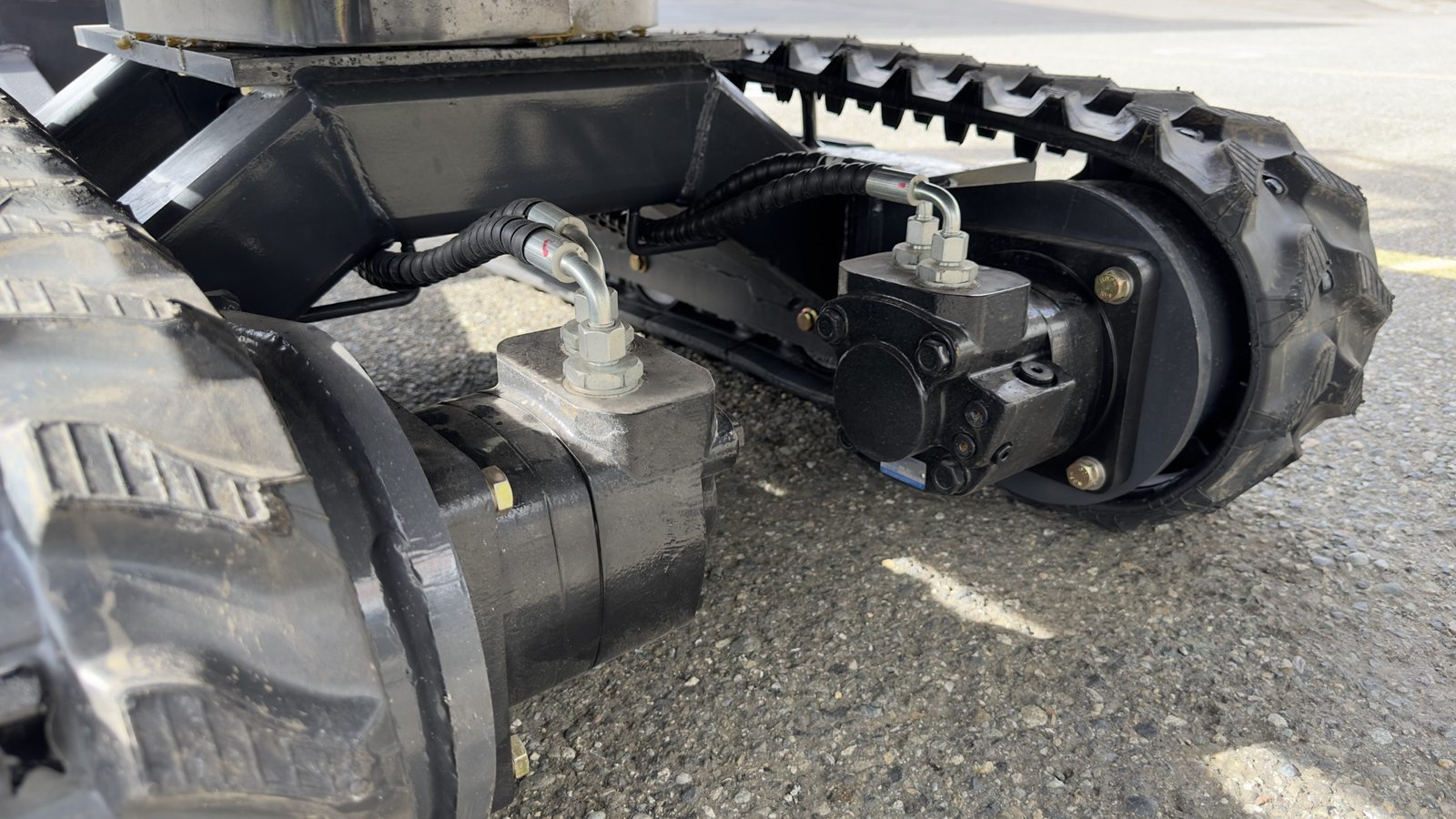

Track Length 1210mm
Track Width 180mm
Ground Clearance 240mm
Platform Width 920mm
Platform Ground Clearance 420mm

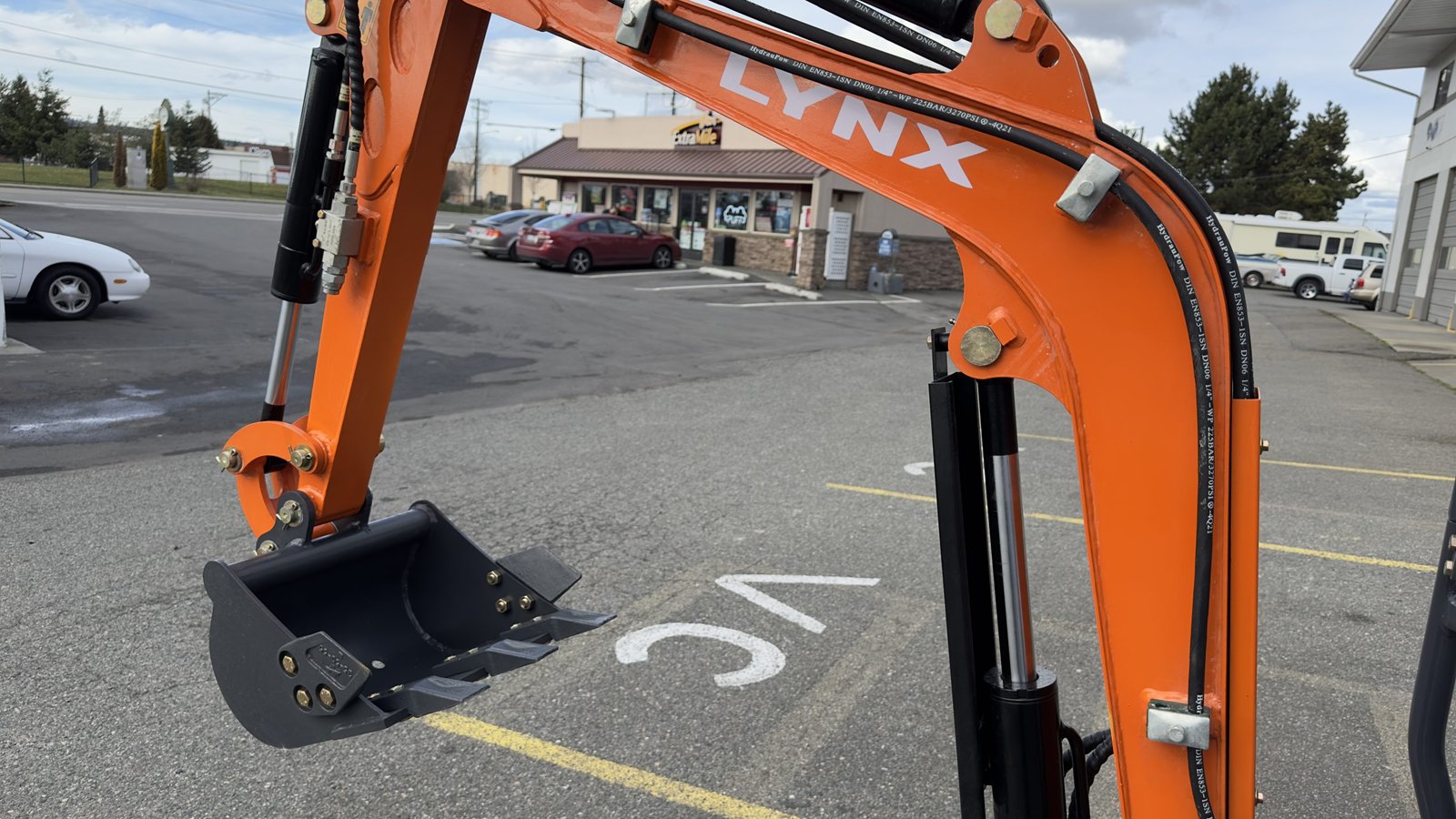

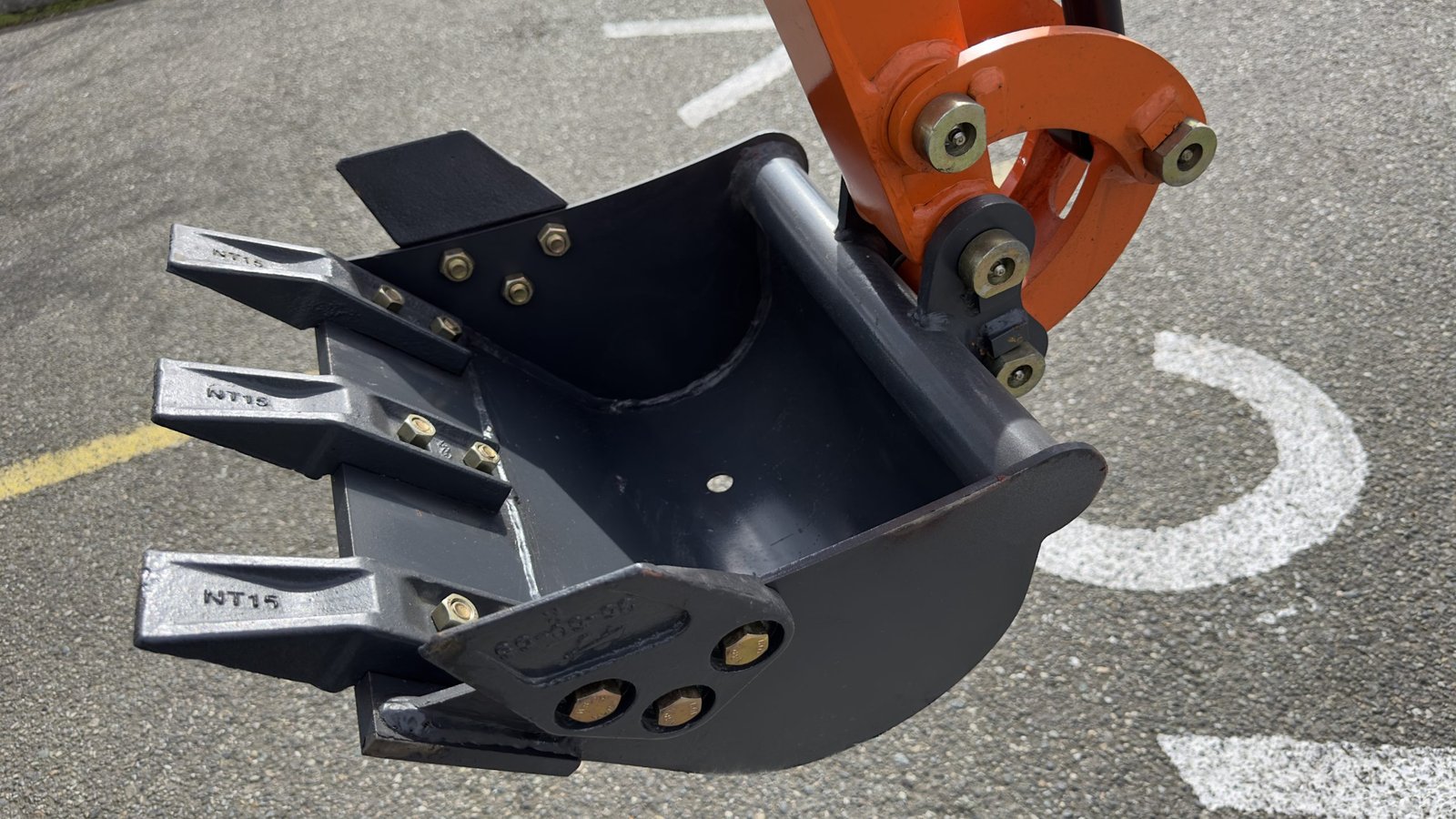

Bucket Width 370mm
Working range
Max. Digging Height 2650mm
Max Digging Depth 1650mm
Max. Digging Radius 2950mm
Max Dumping Height 1750mm
Min. Radius of Gyration 1150mm
Radius of Tail Gyration 680mm
Max. The sinking Depth of the Bulldozer is 230mm
Max. The lifting Depth of the Bulldozer is 210mm
Machine configure
Engine Model Briggs & Stratton
Main valve Beifang
Main Pump Tianji

LYNX Equipment Mini Excavator Attachments industry. You can conquer any job – excavation, ripping, breaking, compacting, lifting, loading, and much more. You can install a jackhammer, Auger, Ripper, Tilt Bucket, a quick attachment connector, a hydraulic thumb, grappler, or any additional attachments. Our buckets and other attachments are incredibly versatile. For example, expand the utility of your mini excavator’s bucket with a thumb attachment to better grip when grappling debris. Alternatively, outfit your excavator with a ripper to pull up slabs, and stumps and scarify earth.

EQUIPMENT ATTACHMENTS

Operator's Manual Book
