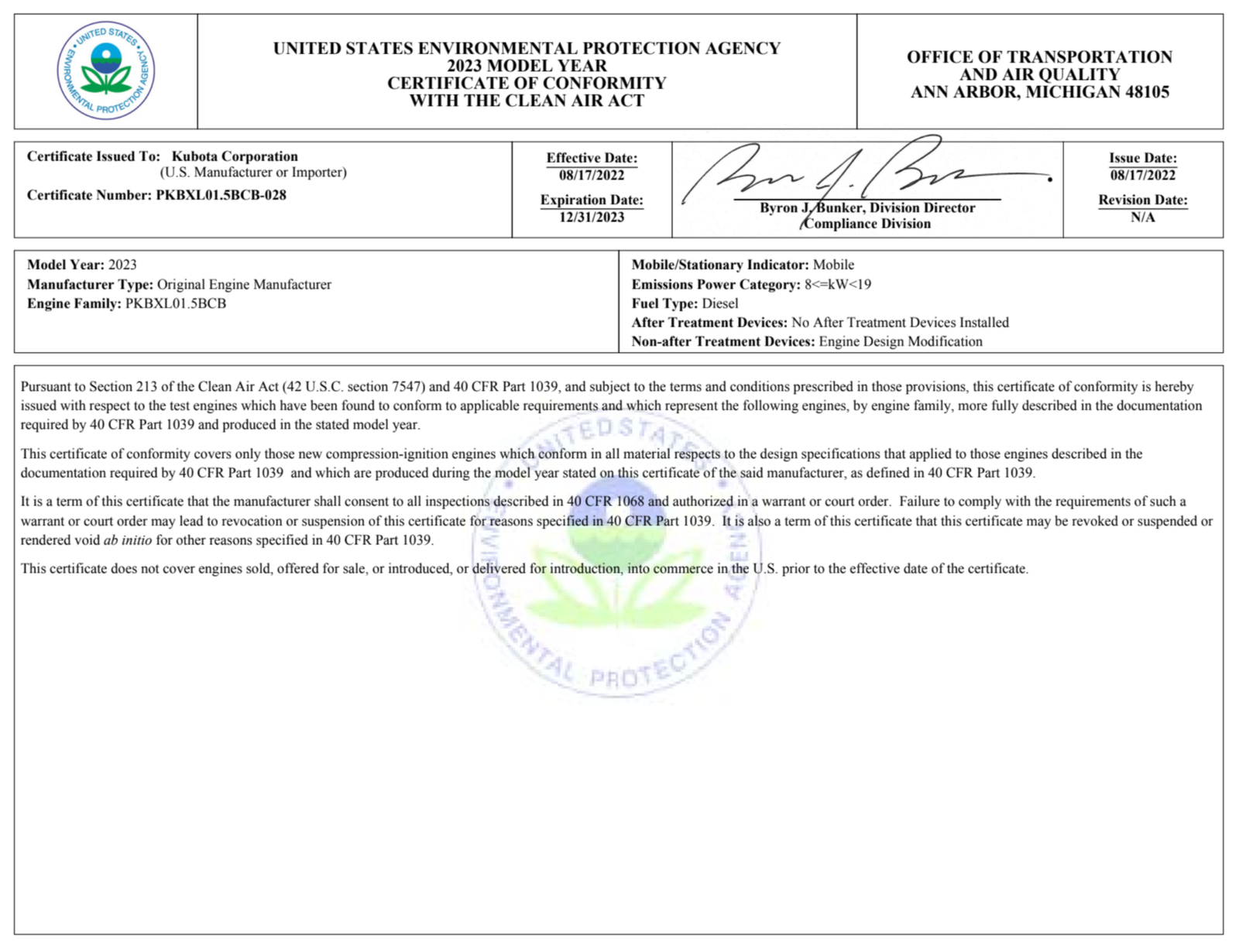

25HP Tracked Mini Skid Steer Loader MTY25 EPA Kubota Diesel Joystick EPA certified
Designed for small-scale landscape and irrigation jobs, the LYNX® MTY25 mini track skid steer PRO has a new design and heavy duty frame, compact spaces. Built for heavy-duty operation, the construction-grade design improves machine durability and longevity.
With years of experience producing 25HP Skid Steer Crawler Loader MTY25, LYNX can supply a wide range of machines. MTY25 can meet many applications attachments. If you need it, please get our timely online service for 25HP Skid Steer Crawler Loader MTY25. In addition to the product list below, you can customize your unique according to your needs.
ABOUT LYNX

OVERVIEW

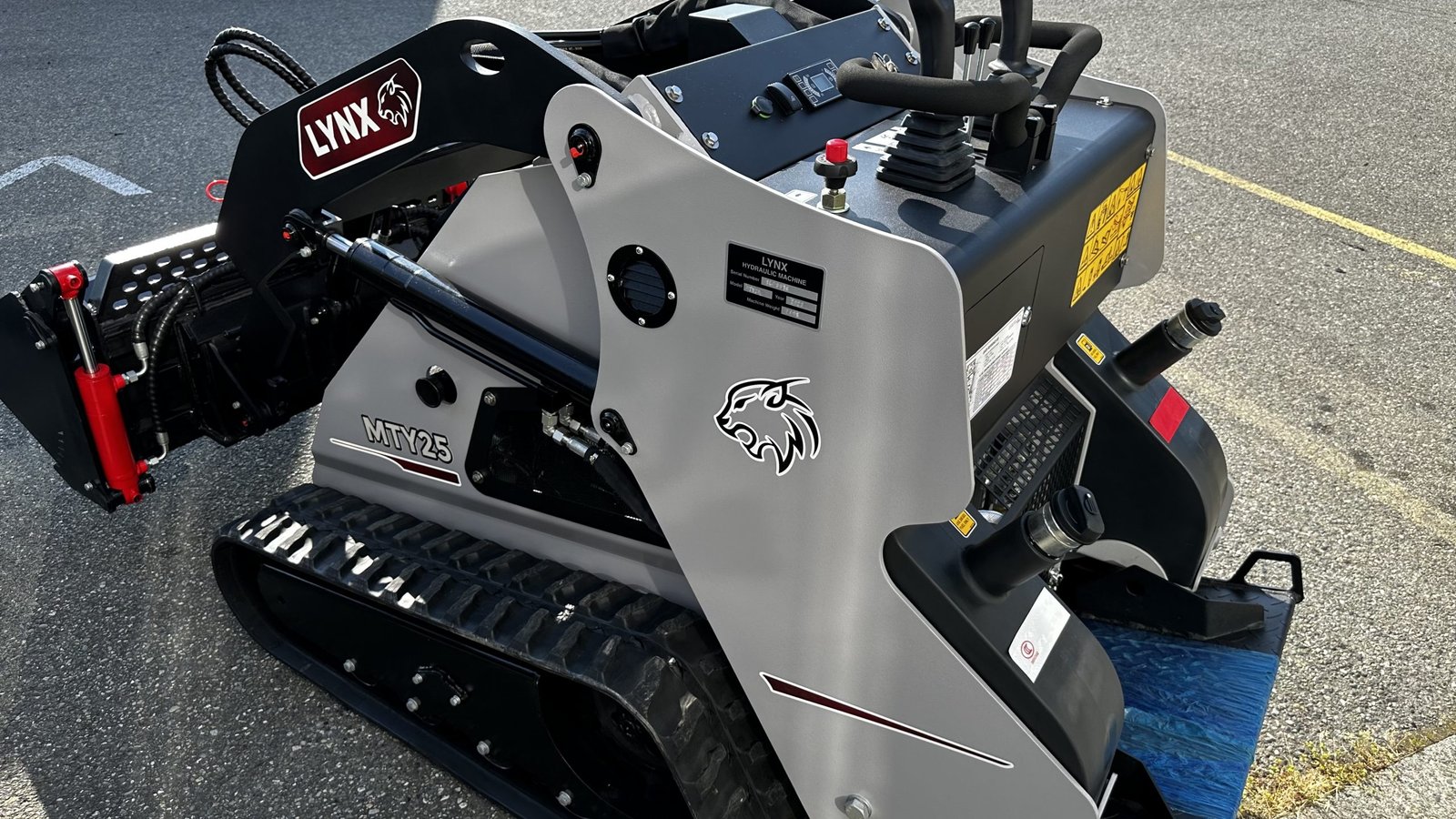

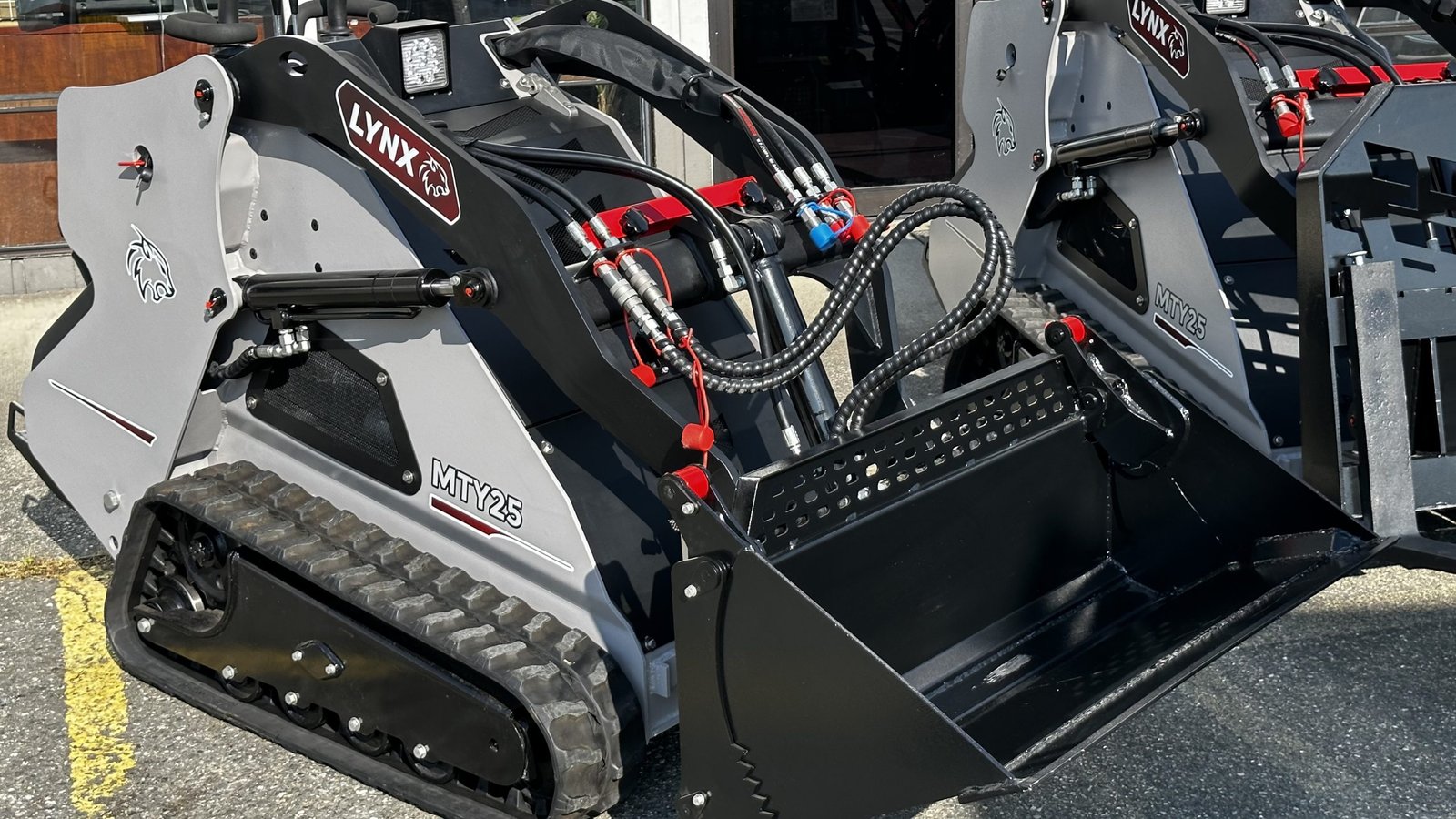

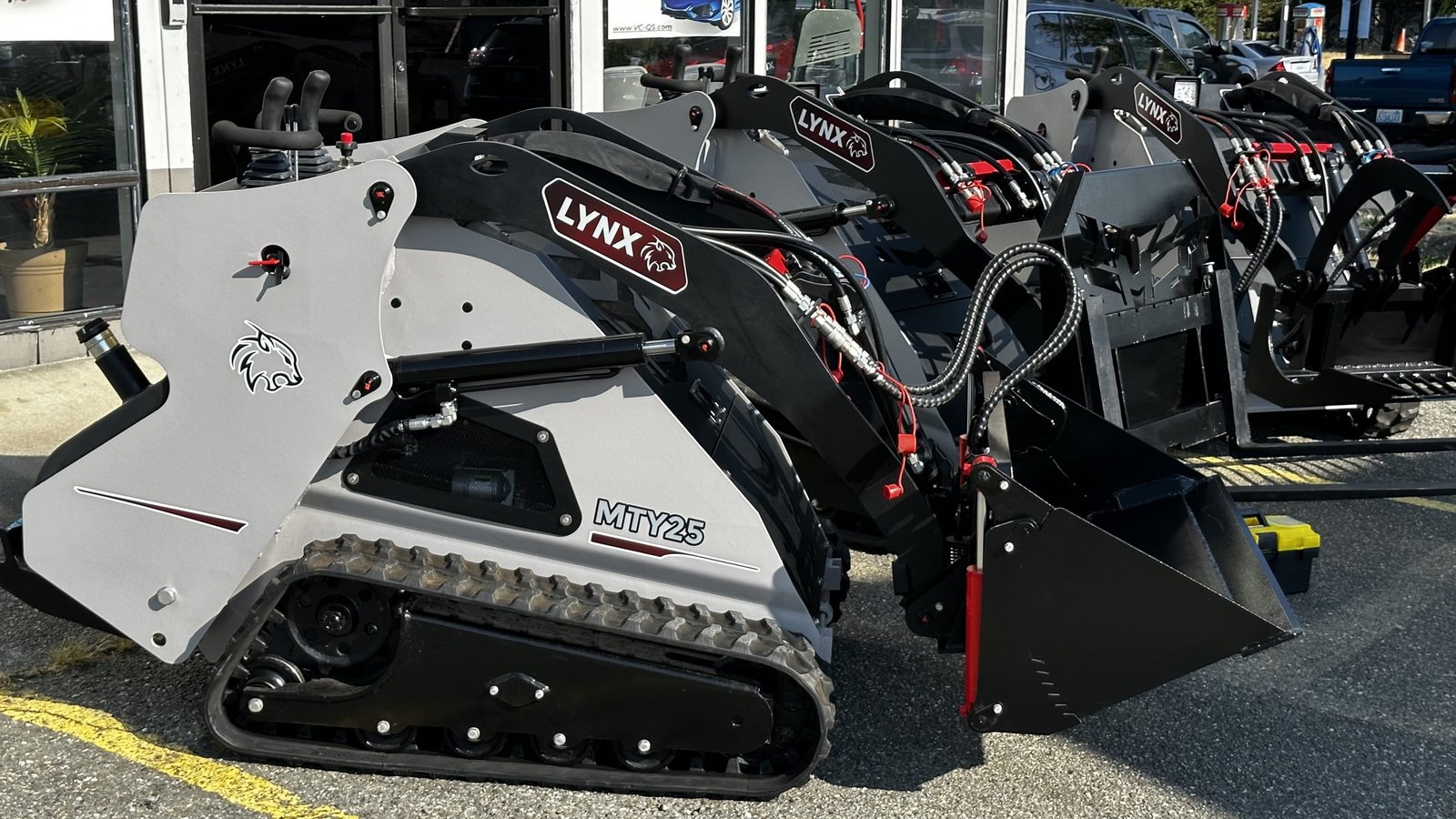

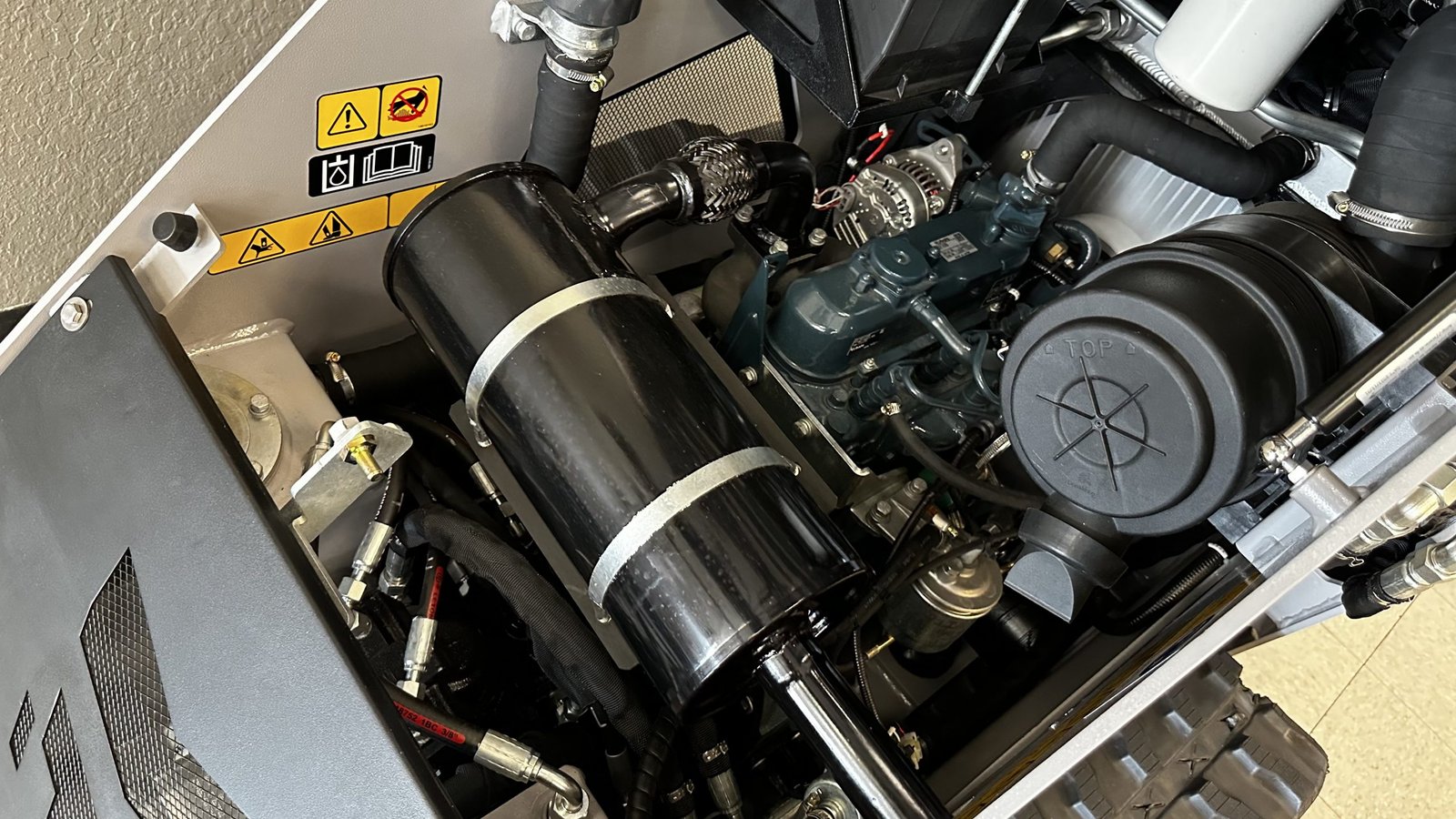

Designed for small-scale landscape and irrigation jobs, the LYNX MTY25 PRO mini skid steer has a NEW DESIGN, compact spaces. Built for heavy-duty operation, the construction-grade design improves machine durability and longevity. The 25-hp Kubota® diesel engine provides exceptional power to all machine functions and delivers added power to the attachment for enhanced productivity on landscape and irrigation jobs. 525 lb (238 kg) rated operating capacity and 72 in (1,821 mm) hinge pin height enable productive loading and the ability to handle tasks requiring more strength and power.

FEATURES

● 25-hp Kubota® diesel engine provides exceptional power

● The MTY25 accepts many attachments for added versatility and improved ROI for landscape customers

● The machine has an advanced attachment latching system for simple, secure connections. The machine's narrow frame easily fits through standard yard gates and is engineered to maneuver in tight, compact spaces for improved productivity in hard-to-reach places

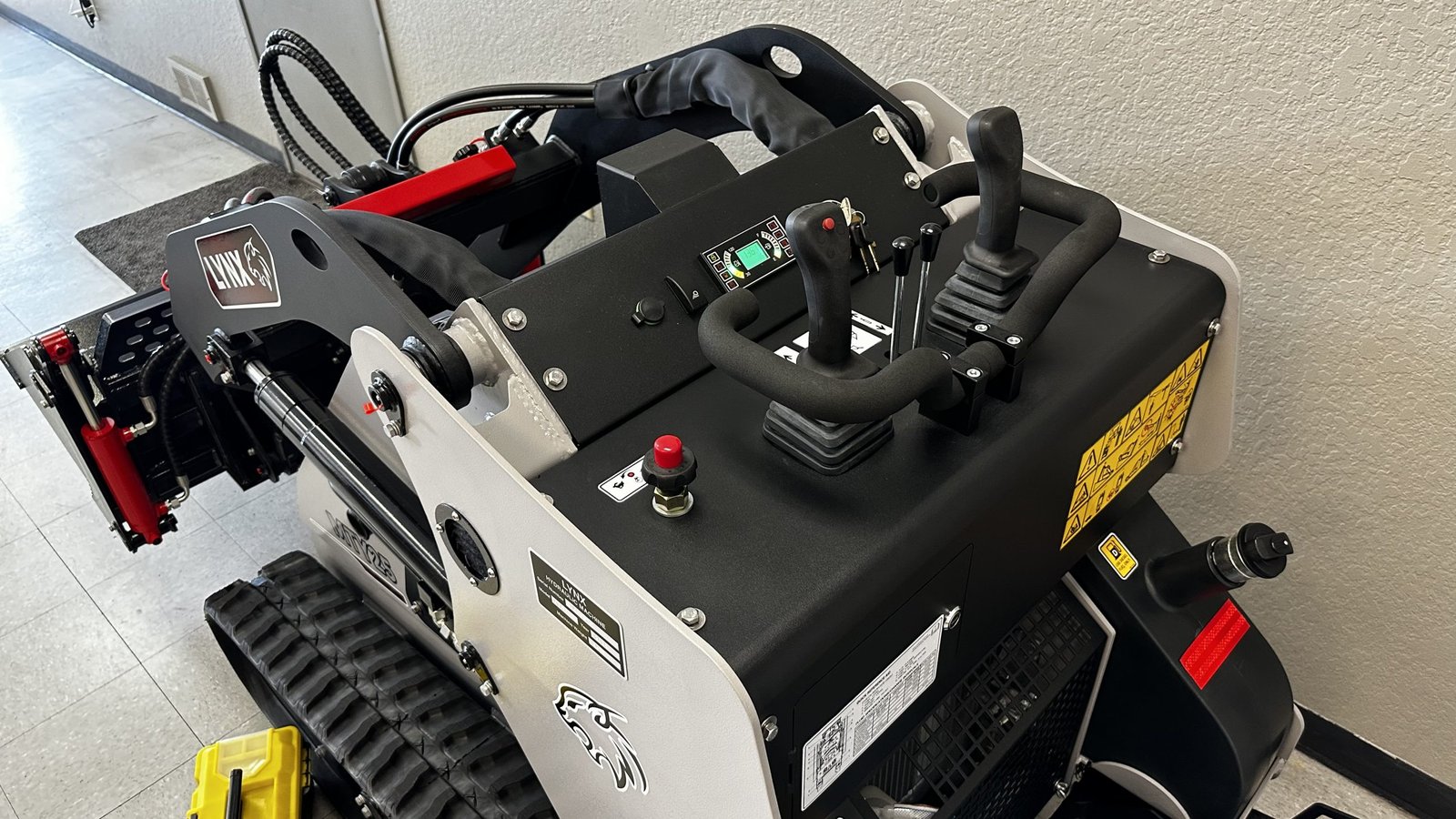

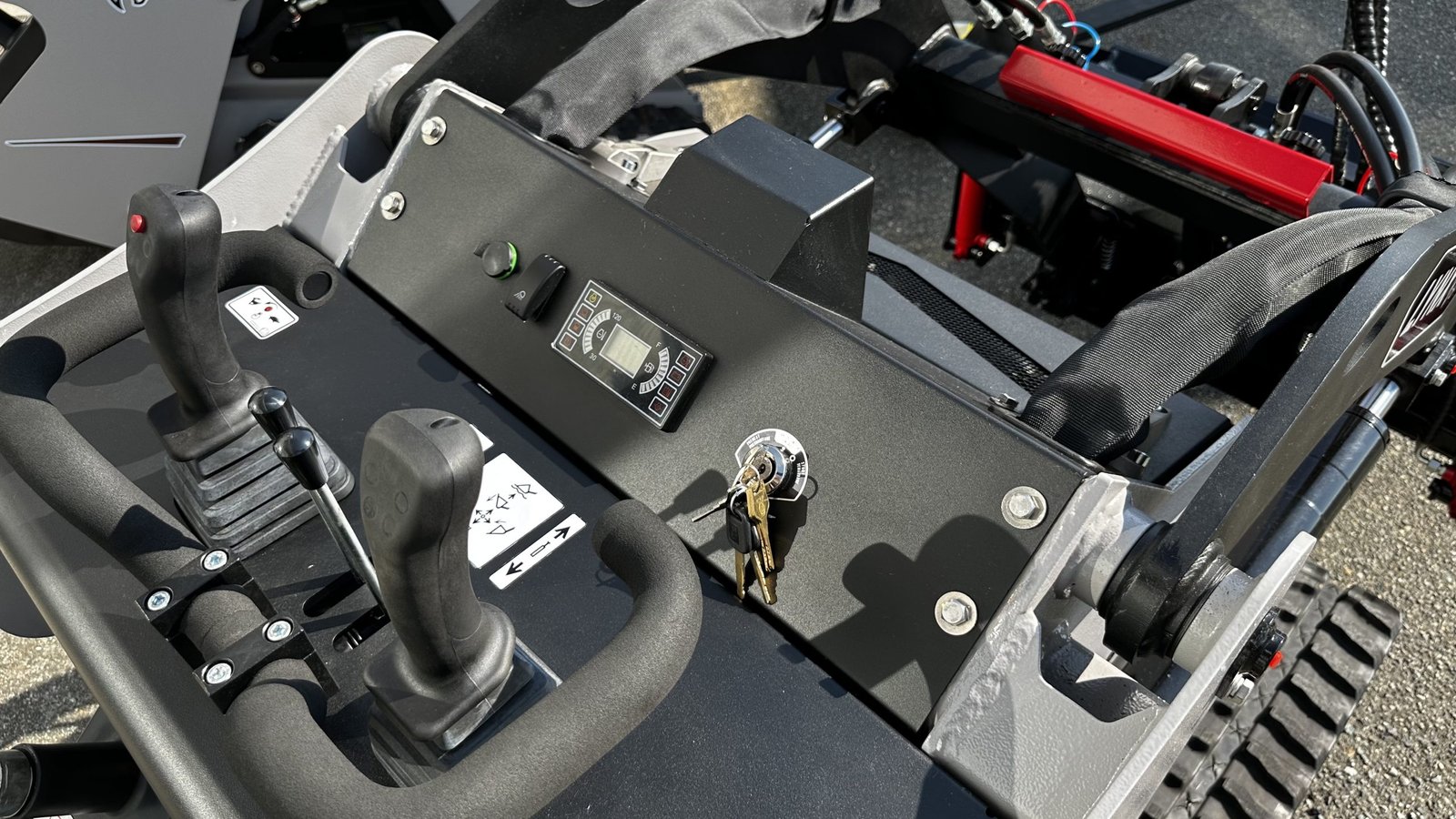

● Ergonomic operator's station comes standard with dual-level ground drive controls with an optional joystick, allowing the operator to control each track independently for improved maintenance and mobility in difficult job site conditions.

● Optimized hydraulics deliver the smoothest ride in the industry, allowing operators to stay comfortable and productive for long hours on the job

SPECS

DIMENSIONS (STD)	The U.S.	METRIC	POWER	The U.S.	METRIC

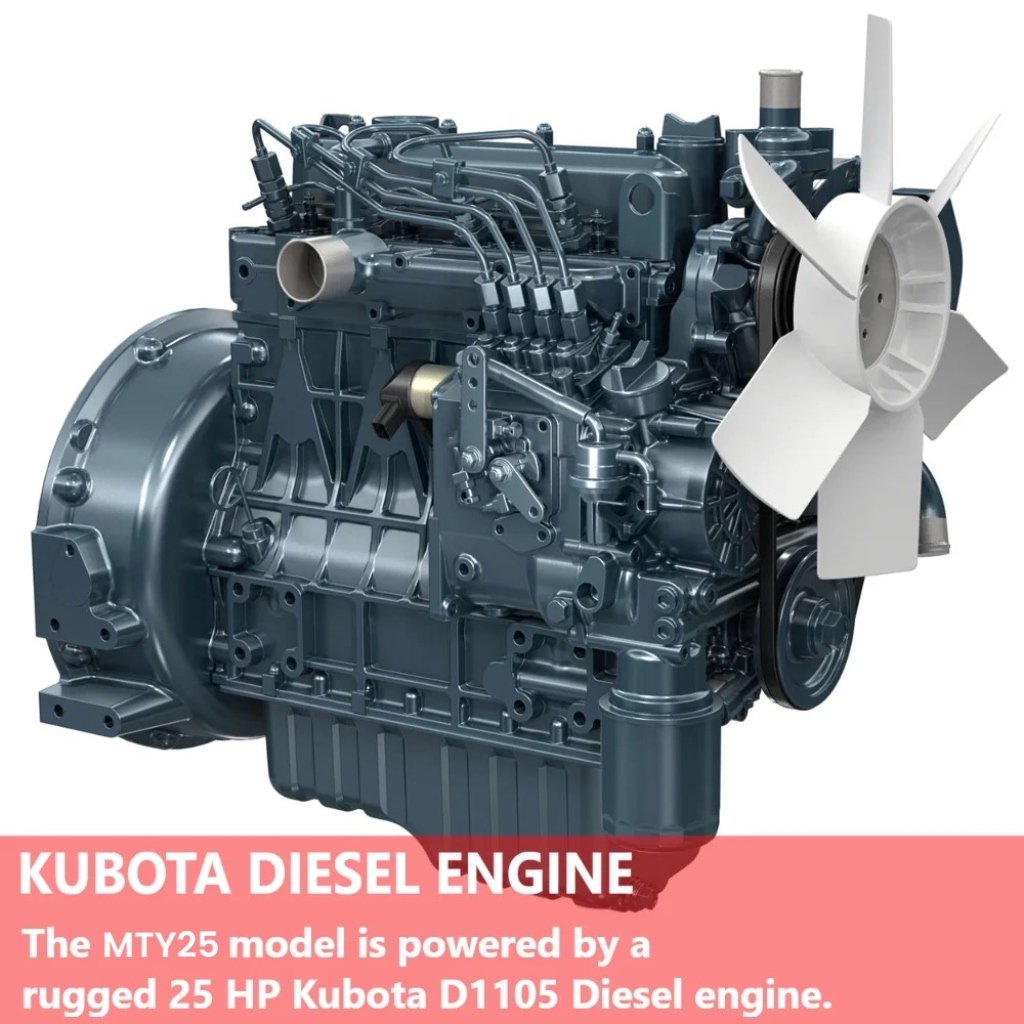

A. Angle of Departure	20°	20°	Engine	Kubota® D1105 Diesel
B. Carry Position	8 in	206 mm	Fuel/Cooling	Diesel/Liquid
C. Dump Angle @ Maximum Height	34°	34°	Gross Horsepower rating (SAE J1995)	24.8 hp	18.5kW

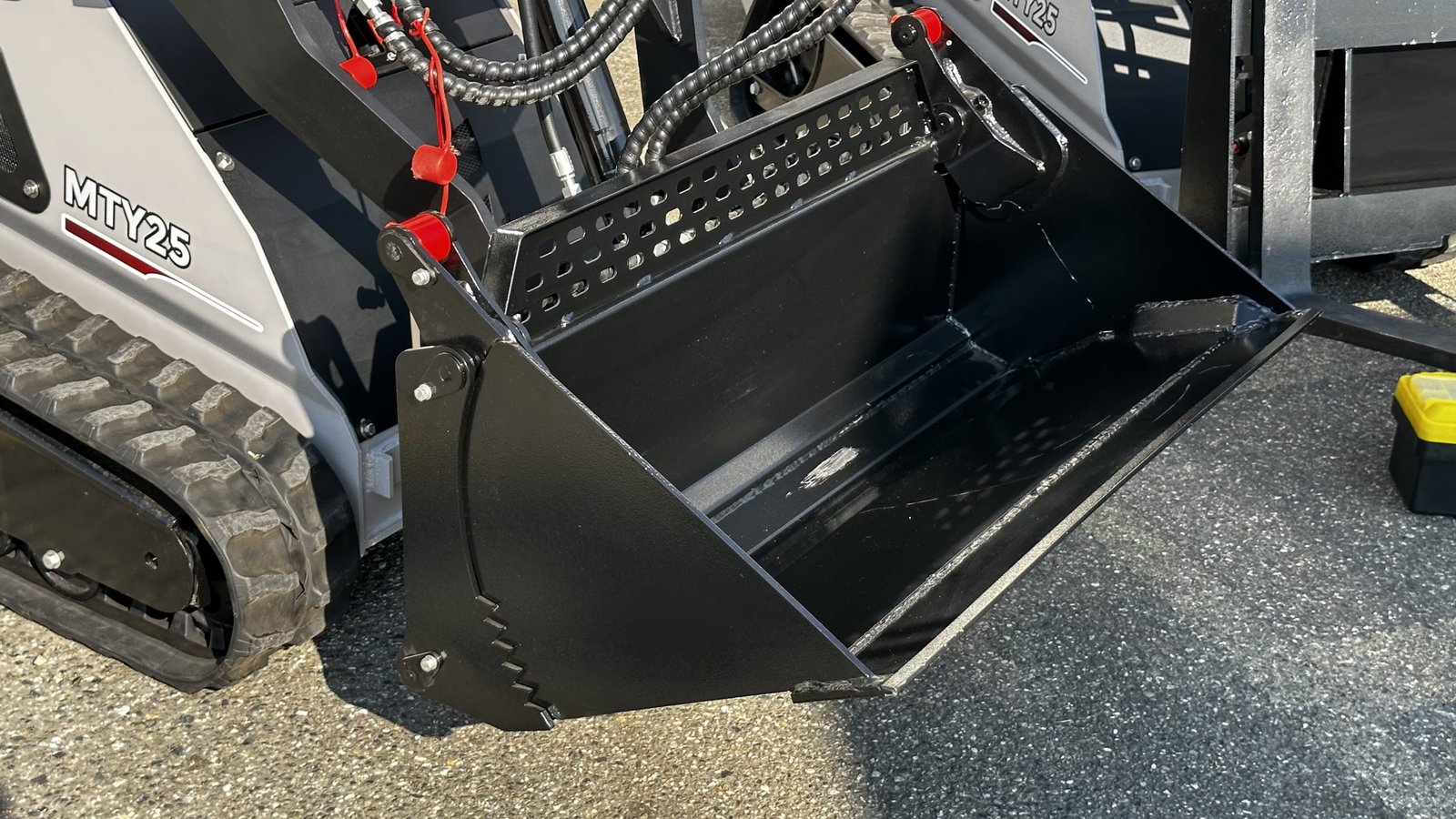

D. Dump Height with Standard Bucket	48 in	1,229 mm	Rated speed	3,000 rpm	3,000 rpm
E. Dump Reach @ Maximum Height	26 in	658 mm	Torque @ 2200 RPM (SAE Net)	71.5 Nm	71.5 Nm
F. Ground Clearance	4 in	108 mm	Number of Cylinders	3	3
G. Ground Clearance-under platform	7 in	173 mm	Displacement	68.53 in³	1.123L
H. Height to Bucket Hinge Pin	72 in	1,821 mm	Bore / Stroke	3.07 in /3.09 mm	78mm /78.4 mm
I. Height	44 in	1,130 mm	Fuel Consumption		6.1 L/h
J. Length without Attachment	80 in	2,020 mm	Lubrication	Gear Pump Pressure
K. Length with Standard Bucket	104 in	2,642 mm	Crankcase Ventilation	Closed
L. Operating Height	102 in	2,602 mm	Air Cleaner	Dry replaceable cartridge with safety element
M. Rollback @carryPosition	25°	25°	Ignition	Diesel-Compression
N. Rollback Fully Raised @ Maximum Height.	102°	102°	Engine Coolant	Propylene glycol/water mix (53%-47%) with freeze protection to -37°C
O. Ground Contact Length	38 in	955 mm	Starting Aid	Glow plugs
P. Turning Radius with Standard Bucket	62 in	1,570 mm	Alternator	Belt Driven, 40 amps, Open
Q. Width	39 in	1,000 mm	Battery	12 V, 45Ah
R. Wheel Tread (over tracks)	31 in	800 mm	Starter	12 volt, Gear Reduction Type, 1.4 kW
S. Width with 36" Bucket	49 in	1,250 mm	Emissions compliance	EPA Tier 4	EU Stage IIIA
PERFORMANCE			HYDRAULIC SYSTEM
Operating capacity (35% of tipping capacity)	525 lb	238 kg	Pump Type	Engine-driven, Two Gear type
Operating capacity (50% of tipping capacity)	750 lb	340 kg	Pump Capacity	14.1 gpm @ 3,000 rpm	53.4 L/min @ 3,000 rpm
Tipping Capacity	1,499 lb	680 kg	System Relief @ Quick Couplers	3,046 psi	210 Bar
Machine weight (no attachment, fluids full)	2,403 lb	1,090 kg	Hydraulic Filter	Full flow replaceable, A 10-micron synthetic media element
Ground drive speed	3.5 mph	5.6 km/h	Hydraulic Cylinders	Double-acting
DRIVE SYSTEM			Main Control Valve	5-Spool, open center series parallel configuration
Main Drive	Fully hydraulic rubber track drive		Attachment Control Valve	2-Spool, open center series parallel configuration
Transmission	Direct drive of the hydraulic motor to main undercarriage drive sprocket		Bore Diameter

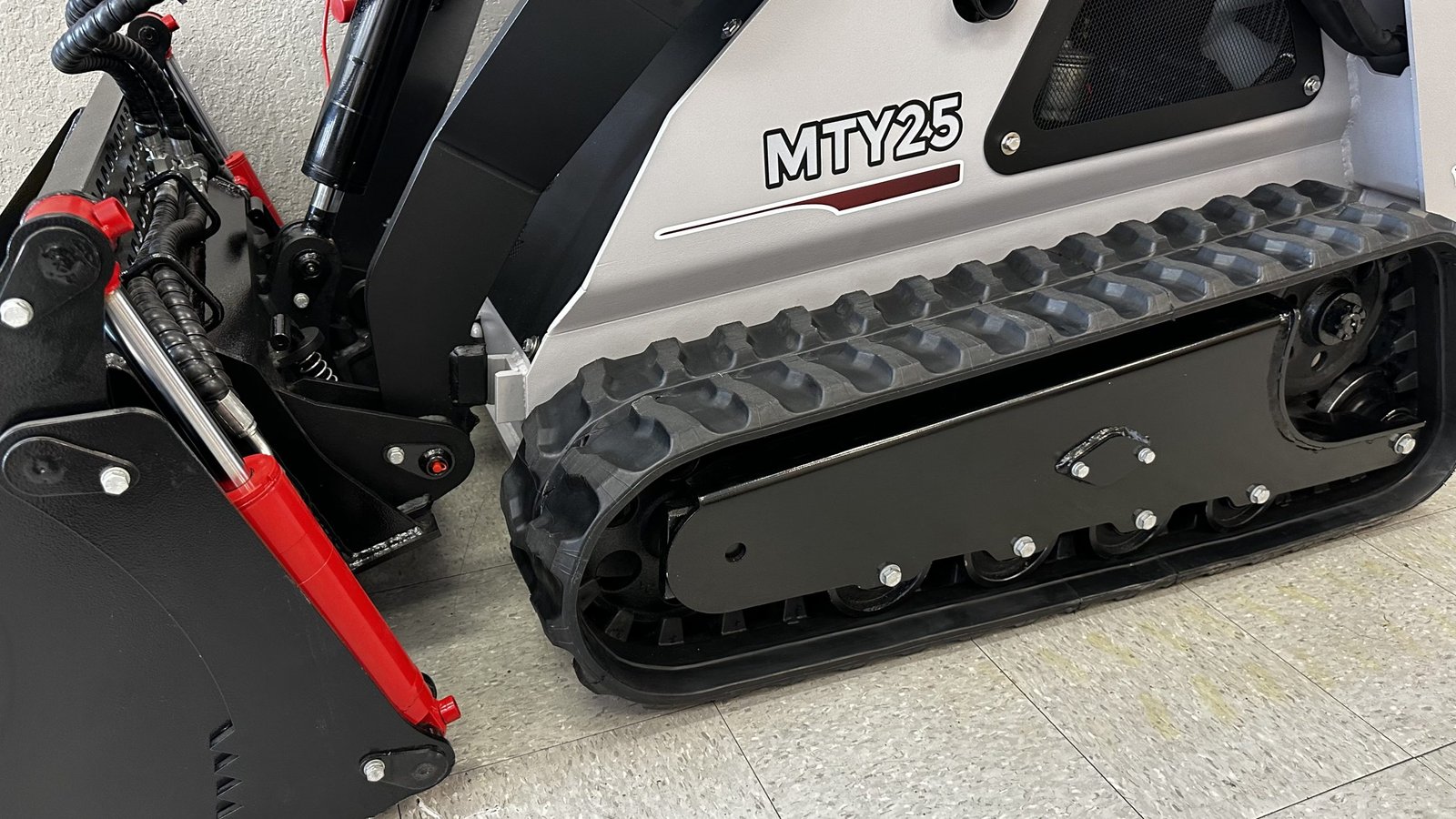

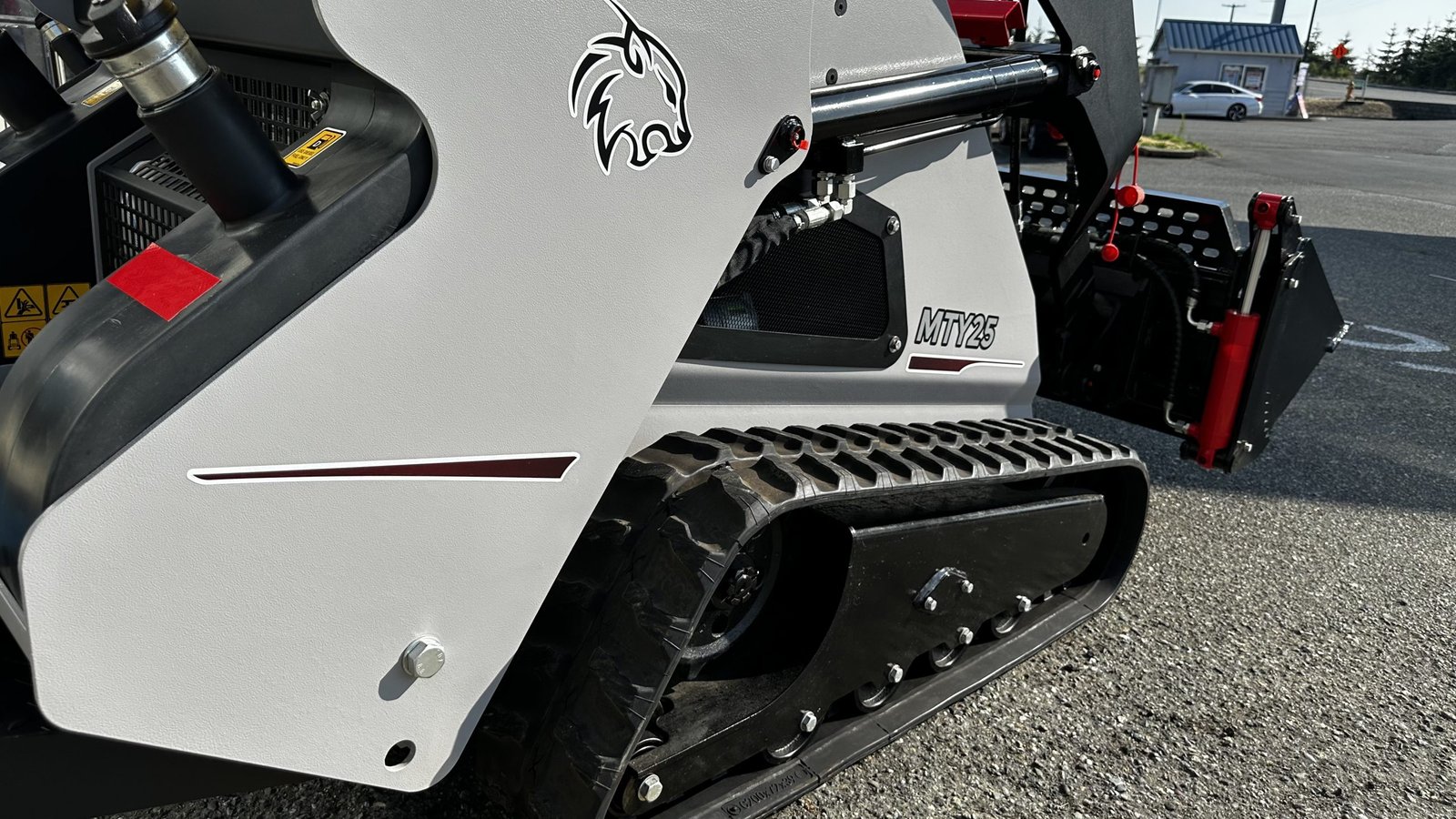

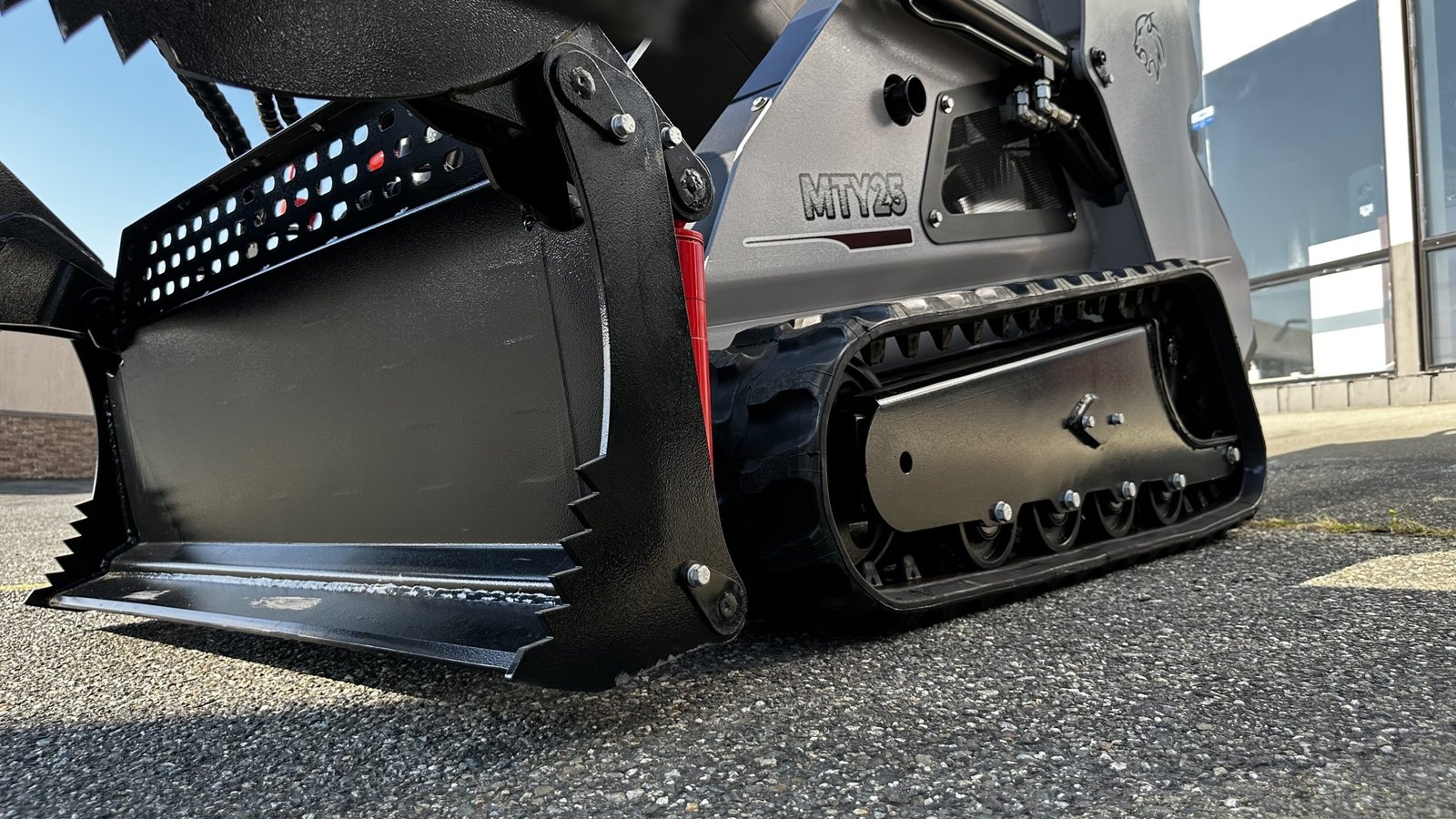

Tracks	7.9 in	200 mm wide	Lift Cylinder (2)	1.77 in	45mm
Rollers	3 Each side		Tilt Cylinder (1)	2.17 in	55mm
Pressure	3.7 psi	25.4 kPa	Rod Diameter
CAPACITIES			Lift Cylinder (2)	0.98 in	25 mm
Cooling System	1.37 gal	5.2 L	Tilt Cylinder (1)	1.18 in	30 mm
Fuel Tank	9.2 gal	35 L	Stroke
Engine Oil with Filter	1.34 gal	5.1L	Lift Cylinder (2)	13.58 in	345 mm
Hydraulic Reservoir	9 gal	34 L	Tilt Cylinder (1)	11.50 in	292mm
Hydraulic System	10.6 gal	40 L	Hydraulic Function Times

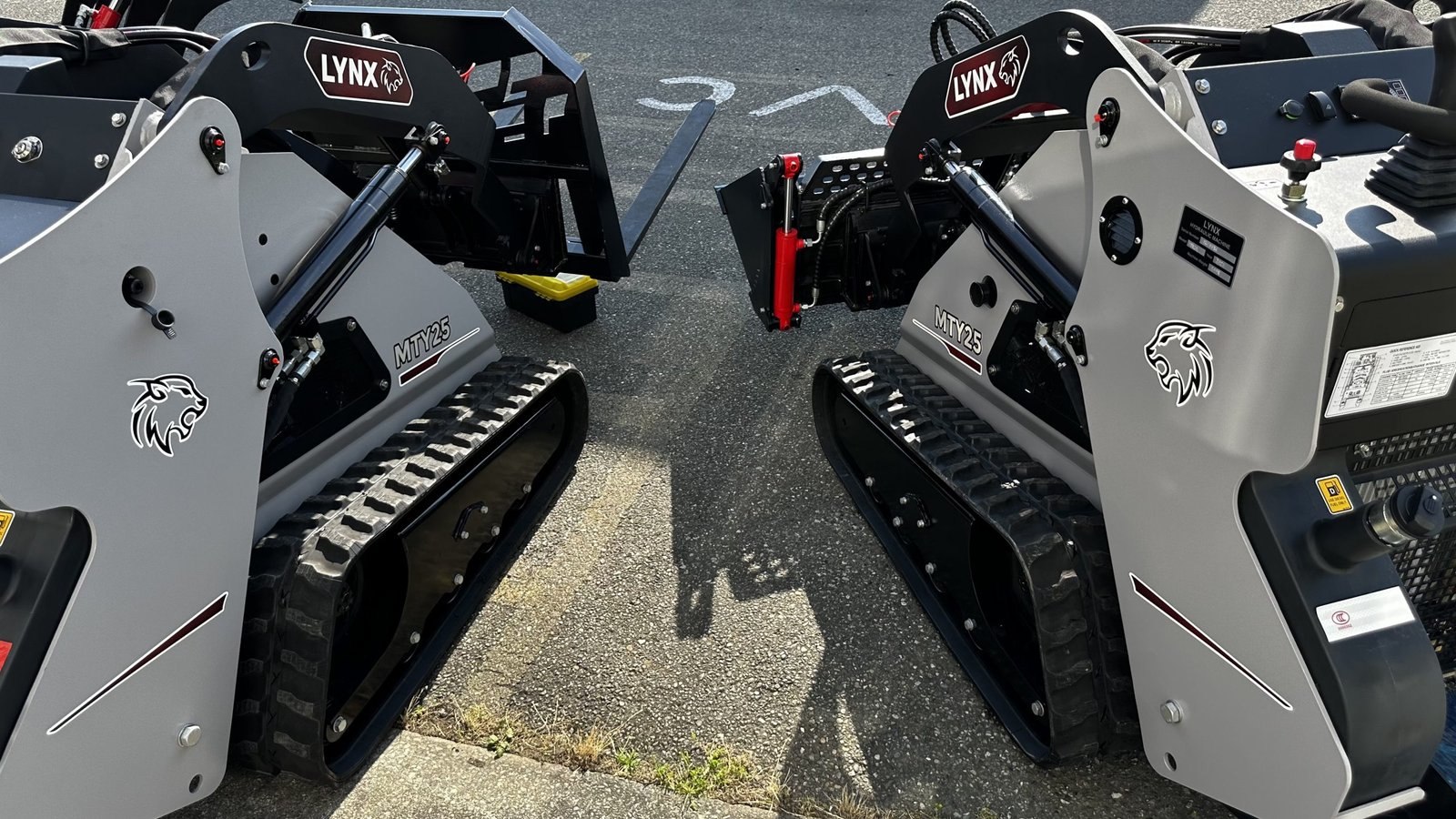

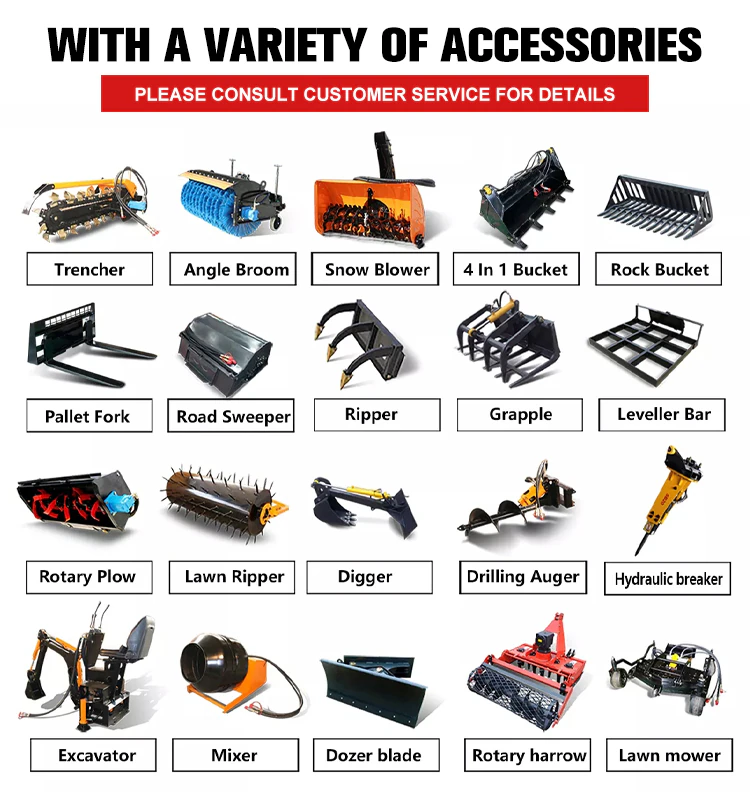

LYNX SKID STEER LOADER INDUSTRY. You can clean or loading, and much more. You can install a Pallet Forklift, Grappler, Grapple Bucket, Auger, Snow shovel Blade, or any additional attachments.
